60HP MARATHON 1800RPM 364T 230/460V DP 3PH MOTOR U520

Catalog Number:  U520
Model Number:  364TTDS4328
Description:  60HP,1800RPM,364T,230/460V,DP,3PH,60HZ,FIRE PUMP
Ship Weight:  716 lbs.

This Marathon motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales office for particulars.

This Marathon Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS: For use on pumps designed for fire pump duty and installed per NFPA-20. These drip proof motors are intended for installation in relatively clean and dry environments. Fire Pump motors are not recommended for use with variable frequency drives.

FEATURES:

  • Cast Iron Frame
  • UL File EX5190, CSA File LR2025 and CE Mark
  • Ball bearings
  • 1.15 Service Factor
  • Red paint on 25 HP through 200 HP
  • NEMA Design B, Code G or less
  • Dual voltage motors have 12 leads, suitable for wye-delta or across the line start on either voltage, or part winding start on low voltage
  • Will accept C-Face kits
  • Rated 60/50 hertz, 190/380 or 380 volt at next lower
  • 230/460 and 460 Volt models rated for 50Hz at next lower HP
  • Efficiency levels meet EISA requirements

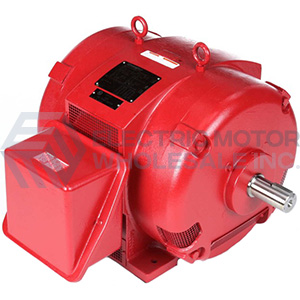

60HP MARATHON 1800RPM 364T 230/460V DP 3PH MOTOR U520
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: U520
Stock # U520
Price: $2,283.00
Compare At: $3,682.00
