15HP MARATHON 1800RPM 254JP DP 200V 3PH MOTOR U206

Catalog Number: U206
Model Number: 254TTDX4074
Description: 15HP,1800RPM,254JP,200V,DP,3PH,60HZ
Ship Weight:  220 lbs.

This Marathon motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales team for particulars.

This Marathon Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team

APPLICATIONS: Close-coupled pumps where the pump impeller is mounted directly on the motor shaft in environments that are relatively clean and dry.

FEATURES:

  • C-Face Footed
  • NEMA JP pump shaft dimensions
  • JP frame has rigid base, drip cover not included
  • Ball bearings, mechanically locked on shaft end
  • Continuous duty
  • 1.15 Service Factor
  • UL Recognized and CSA Certified

This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.

Hertz 60   HP 15
KW 11.2   RPM 1800
FL Eff 91   Volts 200
FL Amps 44   SF 1.15
Motor Wt. 220 LB   UL Recognized Construction
CE Y   CSA Y
Phase 3   Insulation Class F
Frame Size 254JP   Enclosure DP
Ambient 40   Mount Type C-Face Rigid
Therm.Prot. NOT   Orientation HORIZONTAL
Nema Design B   Assembly F1 (F2 Modification Available)
Starting Method ACROSS THE LINE   PE Bearing Type BALL
KVA Code G   OPE Bearing Type BALL
IP Code 12   Drive End Bearing Size 6309
Opposite End Bearing Size 6208

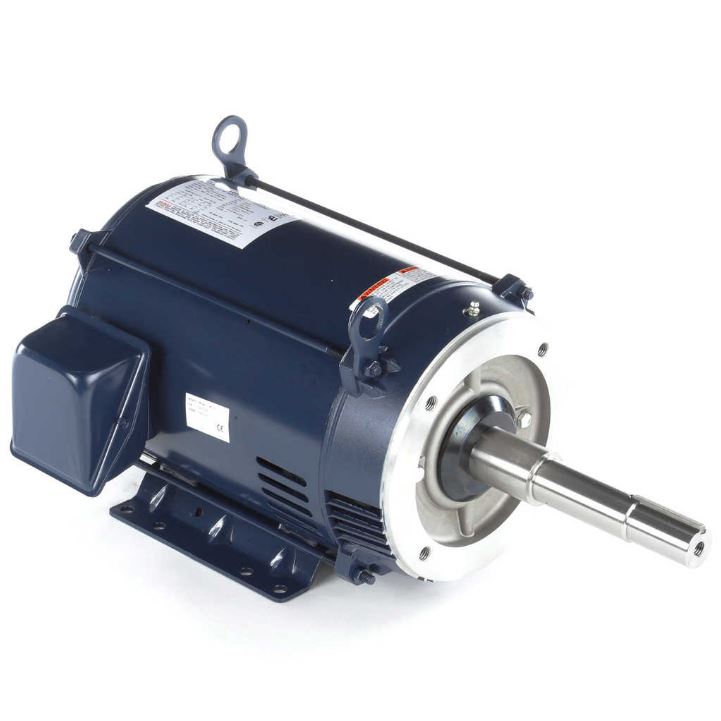

15HP MARATHON 1800RPM 254JP DP 200V 3PH MOTOR U206
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: U206
Stock # U206
Price: $945.00
Compare At: $1,410.00
