5HP MARATHON 3600RPM 182JP DP 230/460V 3PH MOTOR U165A

Catalog Number: U165A
Model Number: 182TTDW14011
Description: 5HP,3600RPM,182JP,230/460V,DP,3PH,60/50HZ
Ship Weight:  67 lbs.

This Marathon motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales team for particulars.

This Marathon Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team

APPLICATIONS: Close-coupled pumps where the pump impeller is mounted directly on the
motor shaft in environments that are relatively clean and dry.

FEATURES:

  • C-Face Footed
  • NEMA JP pump shaft dimensions
  • JP frame has rigid base, drip cover not included
  • Ball bearings, mechanically locked on shaft end
  • Continuous duty
  • 1.15 Service Factor
  • UL Recognized and CSA Certified
  • Rated 60/50 hertz, 190/380 or 380 volt at next lower horsepower
  • Footnotes: 68

This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.

Phase 3 Insulation Class F
Frame 182JP Duty CONTINUOUS
Enclosure DP Ambient 40
Mounting C-Face Rigid NEMA Design B
Orientation HORIZONTAL Starting Type ACROSS THE LINE
Assembly F1 (F2 Modification Available) KVA Code J
Drive End Bearing BALL IP Code 22
Opposite End Bearing BALL
Drive End Bearing Size 6207
Opposite End Bearing Size 6205
Weight 67 LB lbs
CE Y CSA Y
UL UL Listed
Thermal Protection

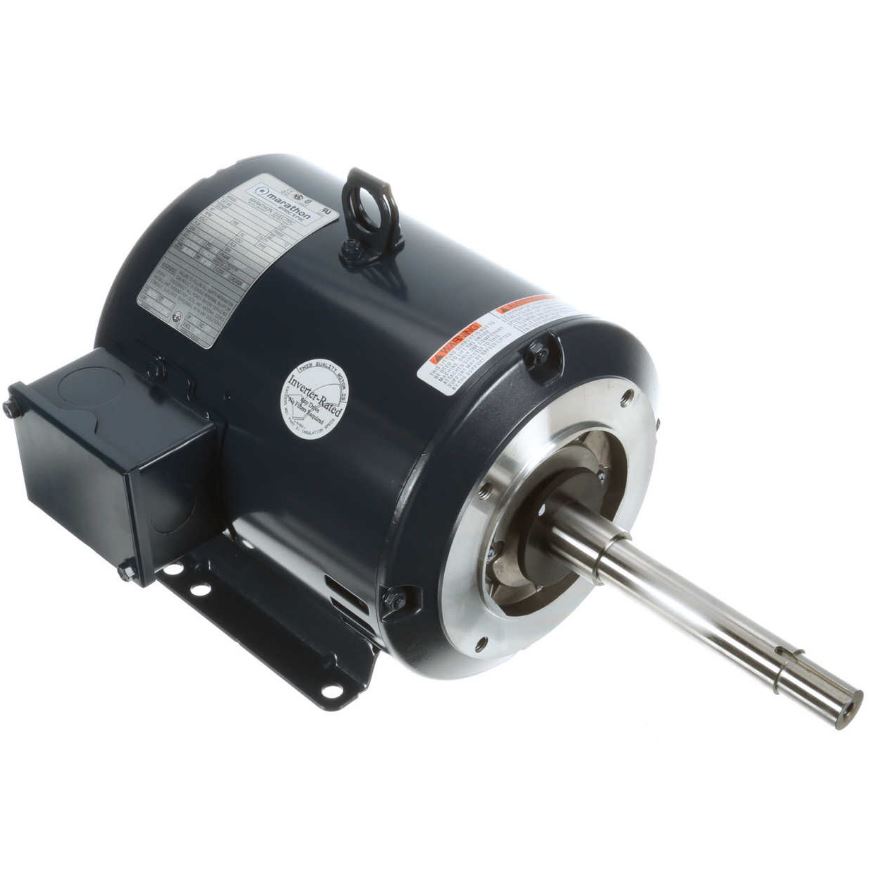

5HP MARATHON 3600RPM 182JP DP 230/460V 3PH MOTOR U165A
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: U165A
Stock # U165A
Price: $377.00
Compare At: $608.00
