2HP MARATHON 1800RPM 145JP DP 230/460V 3PH MOTOR U147A

Catalog Number: U147A
Model Number: 145TTDR4356
Description: 2HP,1800RPM,145JP,230/460V,DP,3PH,60/50HZ
Ship Weight:  44 lbs.

APPLICATIONS: Close-coupled pumps where the pump impeller is mounted directly on the
motor shaft in environments that are relatively clean and dry.

FEATURES:

  • C-Face Footed
  • NEMA JP pump shaft dimensions
  • JP frame has rigid base, drip cover not included
  • Ball bearings, mechanically locked on shaft end
  • Continuous duty
  • 1.15 Service Factor
  • UL Recognized and CSA Certified
  • Rated 60/50 hertz, 190/380 or 380 volt at next lower horsepower
  • Footnote: 68

This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.

Phase 3 Insulation Class B
Frame 145JP Duty CONTINUOUS
Enclosure DP Ambient 40
Mounting C-Face Rigid NEMA Design B
Orientation HORIZONTAL Starting Type ACROSS THE LINE
Assembly F1 ONLY KVA Code K
Drive End Bearing BALL IP Code 22
Opposite End Bearing BALL
Drive End Bearing Size 6206
Opposite End Bearing Size 6203
Weight 44 LB lbs
CE Y CSA Y
UL Recognized Construction
Thermal Protection

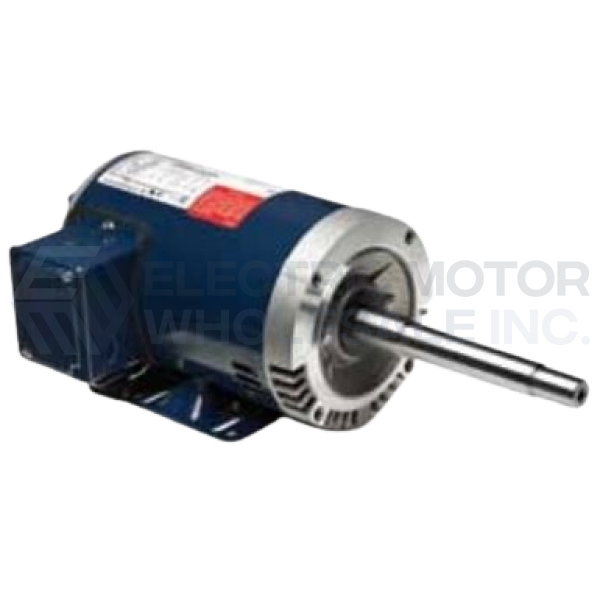

2HP MARATHON 1800RPM 145JP DP 230/460V 3PH MOTOR U147A
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: U147A
Stock # U147A
