1.5HP MARATHON 1800RPM 145JPV DP 200V 3PH MOTOR U137

Catalog Number: U137
Model Number: 145TTDR4043
Description: 1.5HP,1800RPM,145JPV,200V,DP,3PH,60HZ
Ship Weight:  47 lbs.

This Marathon motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales team for particulars.

APPLICATIONS: Close-coupled pumps where the pump impeller is mounted directly on the
motor shaft in environments that are relatively clean and dry.

FEATURES:

  • C-Face Footless
  • NEMA JP pump shaft dimensions
  • JPV frame includes drip cover for vertical mount without base
  • Ball bearings, mechanically locked on shaft end
  • Continuous duty
  • 1.15 Service Factor
  • UL Recognized and CSA Certified
  • Footnote: 27

This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.

Phase 3 Insulation Class B
Frame 145JPV Duty CONTINUOUS
Enclosure DP Ambient 40
Mounting C-Face Footless NEMA Design B
Orientation SHAFT DOWN Starting Type ACROSS THE LINE
Assembly F1 (F2 Modification Available) KVA Code M
Drive End Bearing BALL IP Code 22
Opposite End Bearing BALL
Drive End Bearing Size 6206
Opposite End Bearing Size 6203
Weight 47 LB lbs
CE N CSA Y
UL Recognized Construction
Thermal Protection

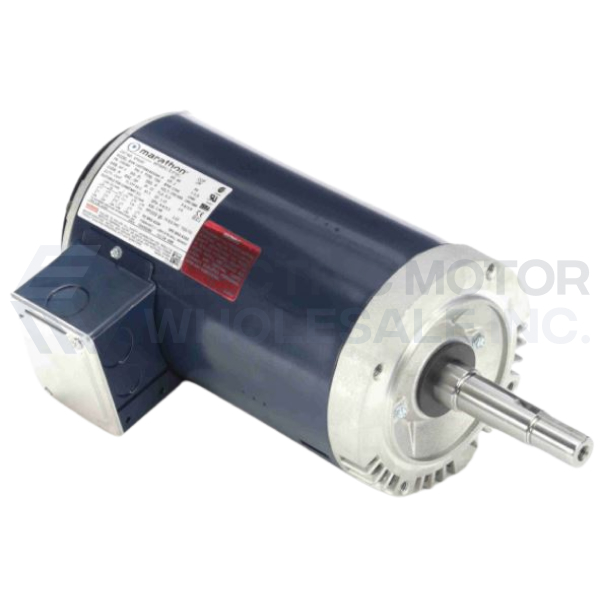

1.5HP MARATHON 1800RPM 145JPV DP 200V 3PH MOTOR U137
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: U137
Stock # U137
