25HP MARATHON 1800RPM 284JM DP 208V 3PH MOTOR U105

Catalog Number: U105
Model Number: 284TTDP4043
Description: 25HP,1800RPM,284JM,208V,DP,3PH,60HZ
Ship Weight:  358 lbs.

This Marathon motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales team for particulars.

This Marathon Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team

APPLICATIONS: Close-coupled pumps where the pump impeller is mounted directly on the
motor shaft in environments that are relatively clean and dry.

FEATURES:

  • C-Face Footed (Rigid Base)
  • Cast Iron Frame
  • NEMA JM pump shaft dimensions
  • JM frame has rigid base
  • Ball bearings, mechanically locked on shaft end
  • Continuous duty
  • Drip Cover not included
  • 1.15 Service Factor
  • UL Recognized and CSA Certified
  • UL Listed for Fire Pump applications
  • Efficiency levels meet EISA requirements

This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.

Phase 3 Insulation Class B
Frame 284JM Duty CONTINUOUS
Enclosure DP Ambient 40
Mounting C-Face Rigid NEMA Design B
Orientation HORIZONTAL Starting Type ACROSS THE LINE
Assembly F1 (F2 Modification Available) KVA Code F
Drive End Bearing BALL IP Code 23
Opposite End Bearing BALL
Drive End Bearing Size 6311
Opposite End Bearing Size 6210
Weight 358 LB lbs
CE Y CSA Y
UL Recognized Construction
Thermal Protection

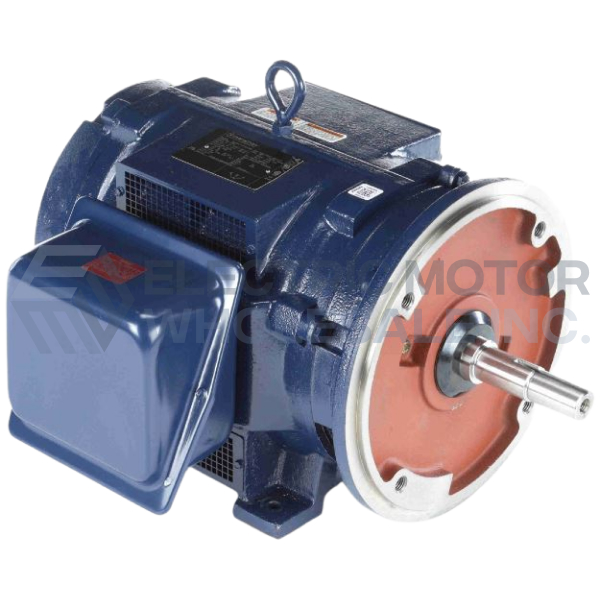

25HP MARATHON 1800RPM 284JM DP 208V 3PH MOTOR U105
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: U105
Stock # U105
Price: $1,276.00
Compare At: $2,058.00
