1/2HP MARATHON 1800RPM 71 208-230/460V TENV 3PH MOTOR R722

Catalog Number: R722
Model Number: 071T17V5329
Description:  1/2HP,1800RPM,71,208-230/460V,TENV,3PH,60/50HZ
Ship Weight:  42 lbs.

APPLICATIONS: Designed for superior extended service in severe environments. These all-stainless motors are able to withstand the severe wash-down environments found in the food processing, chemical processing, beverage industries and any application requiring quick stop and hold during frequent sanitation procedures using high pressure cleaning with concentrated caustic solutions. Motor is BISSC certified for baking industries.


  • Totally Enclosed, Non-Ventilated
  • IEC B14 C-Face Footless
  • Stainless/BISSC
  • Footnotes: N

This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.

Phase 3 Insulation Class F
Frame 71 Duty CONTINUOUS
Enclosure TENV Ambient 40
Mounting ROUND NEMA Design B
Orientation HORIZONTAL Starting Type ACROSS THE LINE
Assembly F1 ONLY KVA Code K
Drive End Bearing BALL IP Code 56
Opposite End Bearing BALL
Drive End Bearing Size 6204
Opposite End Bearing Size 6204
Weight N/A lbs
UL Recognized Construction
Thermal Protection
1/2HP MARATHON 1800RPM 71 208-230/460V TENV 3PH MOTOR R722

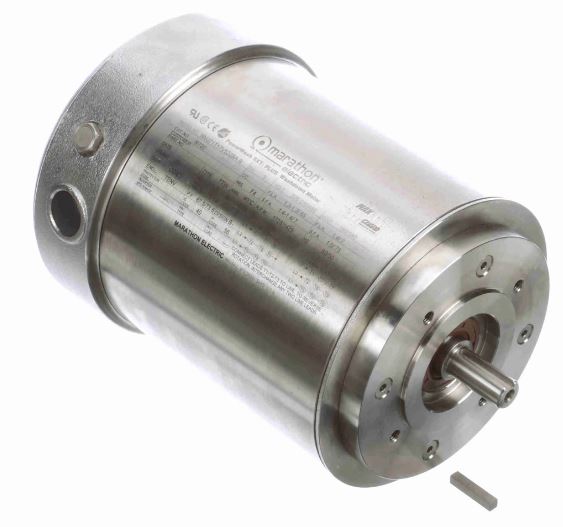

Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: R722
Stock # R722
