3HP MARATHON 1800RPM 182TC 208-230/460V TEFC 3PH MOTOR N656B

MARATHON N656B has been Superseded by N656C

Catalog Number: N656B
Model Number: 182TTWW4028
Description:  3HP,1800RPM,182TC,208-230/460V,TEFC,3PH,60HZ
Ship Weight:  64 lbs.

Phase 3 Insulation Class F
Frame 182TC Duty CONTINUOUS
Enclosure TEFC Ambient 40
Mounting C-Face Footless NEMA Design B
Orientation HORIZONTAL Starting Type LINE OR INVERTER
Assembly F1 (F2 Modification Available) KVA Code K
Drive End Bearing BALL IP Code 55
Opposite End Bearing BALL
Drive End Bearing Size 6207
Opposite End Bearing Size 6205
Weight 64 LB lbs Inverter Speed Range CONSTANT 10:1
CE Y CSA Y
UL Recognized Construction
Thermal Protection

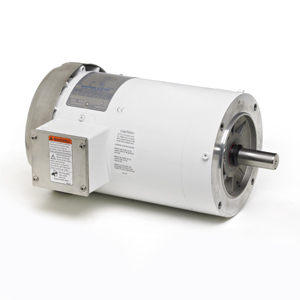

3HP MARATHON 1800RPM 182TC 208-230/460V TEFC 3PH MOTOR N656B
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: N656B
Stock # N656B
