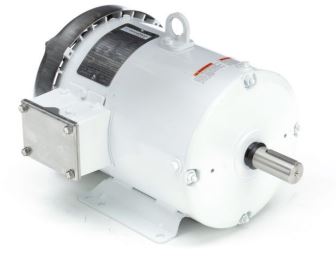

3HP MARATHON 1800RPM 182T 208-230/460V TEFC 3PH MOTOR N314B
|Ship Weight:||76 lbs.|
This Marathon Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.
APPLICATIONS: Designed for superior extended service in severe environments. Typical applications include food processing areas requiring frequent sanitation procedures using high pressure cleaning with concentrated caustic solutions, areas of high humidity and in chemical environments.
- Totally Enclosed, Fan cooled
- Rigid base
- 1 1/8" Shaft Diameter
- Suitable for 10:1 CT 60 minute duty, otherwise 2:1 CT
- MAX GUARD® Class F insulation system
- 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power
- Double sealed ball bearings
- Stainless steel conduit box cover, nameplate, fan guard (TEFC only)
- Cast oversized conduit box with high temperature nitrile gaskets and
- Plugged drain holes in each endshield for all angle mounting
- Internal corrosion resistant coatings on frame, base, endshields, rotor and stator
- USDA-approved, white epoxy RUST-OLEUM® paint
- UL Recognized, CSA Certified and CE Mark
- F1 Mounting only, cannot reassemble to F2
- Efficiency levels meet EISA requirements
- Footnotes: V,13
This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.
|Orientation||HORIZONTAL||Starting Type||LINE OR INVERTER|
|Assembly||F1 ONLY||KVA Code||K|
|Drive End Bearing||BALL||IP Code||55|
|Opposite End Bearing||BALL|
|Drive End Bearing Size||6207|
|Opposite End Bearing Size||6205|
|Weight||76 LB lbs||Inverter Speed Range||CONSTANT 10:1|
