3HP MARATHON 3450RPM 56J TEFC 3PH EPOXY WASHDOWN JET PUMP MOTOR N238

3HP MARATHON 3450RPM 56J TEFC 3PH EPOXY WASHDOWN JET PUMP MOTOR N238

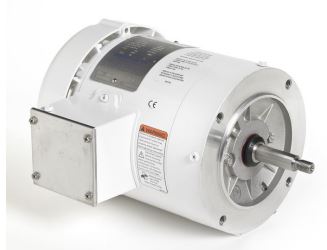

Picture is for reference only.

Part Number:

N238

Model/Spec Number:

056T34W99012

Manufacturer:

Marathon Obsolete
N238 MARATHON 3HP Three Phase PowerWash XT Centrifugal Pump (Jet Pump) Washdown Motor designed for superior extended service in severe environments. Typical applications include food processing areas requiring frequent sanitation procedures using high pressure cleaning with concentrated caustic solutions, areas of high humidity and in chemical environments.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

43 lbs

Dimensions:

14 x 17 x 13 inches

HS Code:

8501.52.4000

UPC:

722856029997

Technical Details

Brand:

Marathon

Application:

Washdown Epoxy, Jet Pump

Output HP:

3

Output KW:

2.2

Output RPM:

3450

Frame Size NEMA:

56J

Mount NEMA:

C Face No Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP55

Voltage:

208-230/460
