1.5HP MARATHON 3450RPM 56J TEFC 3PH EPOXY WASHDOWN JET PUMP MOTOR N224

1.5HP MARATHON 3450RPM 56J TEFC 3PH EPOXY WASHDOWN JET PUMP MOTOR N224

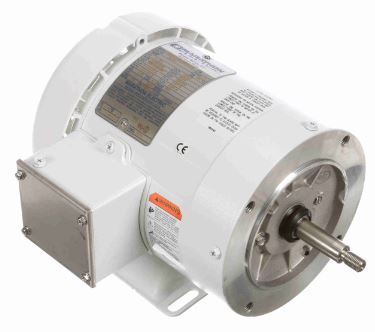

Picture is for reference only.

Part Number:

N224

Model/Spec Number:

056T34W99005

Manufacturer:

Marathon Obsolete
N224 MARATHON 1.5HP Three Phase PowerWash XT Centrifugal Pump (Jet Pump) Washdown Motor designed for superior extended service in severe environments.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

31 lbs

Dimensions:

14 x 17 x 13 inches

HS Code:

8501.52.4000

UPC:

722856029928

Technical Details

Brand:

Marathon

Application:

Jet Pump

Output HP:

1.5

Output KW:

1.1

Output RPM:

3450

Frame Size NEMA:

56J

Mount NEMA:

C Face With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP55

Voltage:

208-230/460

Product Information Packet
