3/4HP MARATHON 3450RPM 56J TEFC 3PH EPOXY WASHDOWN JET PUMP MOTOR N220

3/4HP MARATHON 3450RPM 56J TEFC 3PH EPOXY WASHDOWN JET PUMP MOTOR N220

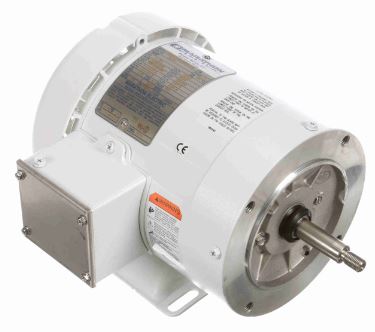

Picture is for reference only.

Part Number:

N220

Model/Spec Number:

056T34W99003

Manufacturer:

Marathon Obsolete
N220 MARATHON 3/4HP Three Phase PowerWash XT Centrifugal Pump (Jet Pump) Washdown Motor designed for superior extended service in severe environments. Typical applications include food processing areas requiring frequent sanitation procedures using high pressure cleaning with concentrated caustic solutions, areas of high humidity and in chemical environments.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

24 lbs

Dimensions:

12 x 18 x 12 inches

HS Code:

8501.52.4000

UPC:

722856029904

Technical Details

Brand:

Marathon

Application:

Jet Pump, Washdown Epoxy

Output HP:

3/4

Output KW:

0.55

Output RPM:

3450

Frame Size NEMA:

56J

Mount NEMA:

C Face With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP55

Voltage:

208-230/460

Product Information Packet
