3HP MARATHON 3490RPM 145JM TEFC 3PH EPOXY WASHDOWN PUMP MOTOR N206

3HP MARATHON 3490RPM 145JM TEFC 3PH EPOXY WASHDOWN PUMP MOTOR N206

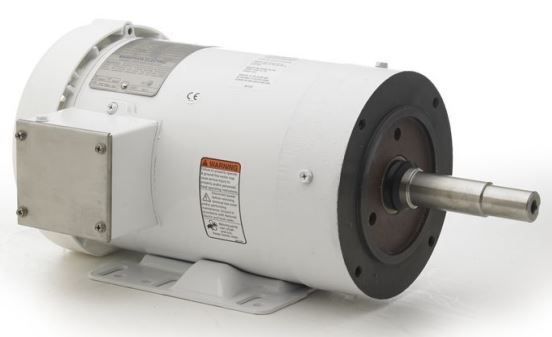

Picture is for reference only.

Part Number:

N206

Model/Spec Number:

145TTWR14004

Manufacturer:

Marathon Obsolete
N206 MARATHON 3HP Three Phase PowerWash XT Close-Coupled JM Pump Motor designed for use with close-coupled pumps where the pump impeller is mounted directly on the motor shaft in environments that are wet, high humidity and in chemical environments.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

52 lbs

Dimensions:

14 x 22 x 13 inches

HS Code:

8501.52.4000

UPC:

722856029812

Technical Details

Brand:

Marathon

Application:

Closed Coupled, Washdown Epoxy

Output HP:

3

Output KW:

2.2

Output RPM:

3490

Frame Size NEMA:

145JM

Mount NEMA:

C Face With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP55

Voltage:

230/460

Product Information Packet
