1HP MARATHON 1800RPM 143JM TEFC 208-230/460V 3PH MOTOR N201

Catalog Number: N201
Model Number: 143TTWR14032
Description: 1HP,1800RPM,143JM,208-230/460V,TEFC,3PH,60HZ
Ship Weight:  38 lbs.

APPLICATIONS: Designed for superior extended service in severe environments on close-coupled pumps where the pump impeller is mounted directly on the motor shaft. Typical applications include food processing areas requiring frequent sanitation procedures using high pressure cleaning with concentrated caustic solutions, areas of high humidity and in chemical environments.

FEATURES:

  • C-Face with base
  • Totally enclosed fan cooled
  • 10:1 Variable torque, Constant torque speed range 10:1
  • MAX GUARD® Class F insulation system
  • 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power
  • Double sealed ball bearings
  • 303 Stainless steel shaft with spring loaded contact seals in each endshield
  • Stainless steel conduit box cover, nameplate, fan guard (TEFC only)
    and hardware
  • Cast oversized conduit box with high temperature nitrile gaskets and
    threaded entrance
  • Plugged drain holes in each endshield for all angle mounting
  • Internal corrosion resistant coatings on frame, base, endshields, rotor and stator
  • USDA-approved, white epoxy RUST-OLEUM® paint
  •  UL Recognized, CSA Certified and CE Mark
  • Efficiency levels meet EISA requirements

This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.

Phase 3 Insulation Class F
Frame 143JM Duty CONTINUOUS
Enclosure TEFC Ambient 40
Mounting C-Face Rigid NEMA Design B
Orientation HORIZONTAL Starting Type ACROSS THE LINE
Assembly F1 ONLY KVA Code L
Drive End Bearing BALL IP Code 55
Opposite End Bearing BALL
Drive End Bearing Size 6206
Opposite End Bearing Size 6203
Weight 38 LB lbs
CE Y CSA Y
UL Recognized Construction
Thermal Protection

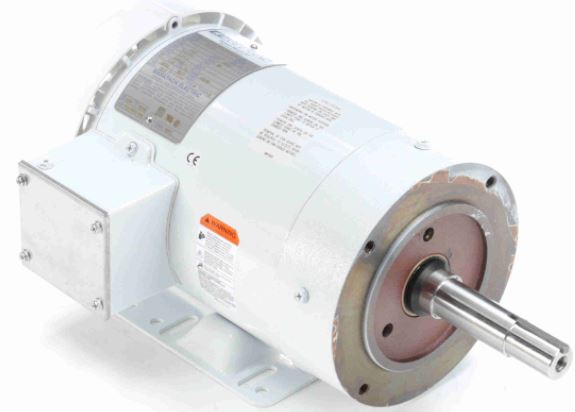

1HP MARATHON 1800RPM 143JM TEFC 208-230/460V 3PH MOTOR N201
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: N201
Stock # N201
Price: $550.00
Compare At: $1,266.00
