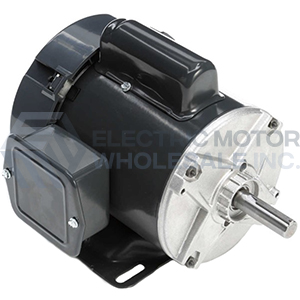

1/2HP MARATHON 3450RPM 56 115/208-230V TEFC 1PH MOTOR K339
|Ship Weight:||23 lbs.|
This Marathon motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales office for particulars.
APPLICATIONS: General purpose with continuous duty rating. Standard operating characteristics and mechanical construction for use under usual service conditions without restriction to a particular application or type. Not for outdoor use.
- No overload protection
- Capacitor Start Induction Run design
- Ball bearings
- Will accept C-Face kit
- Heavy gauge steel construction
- 1.15 Service Factor
- UL Recognized and CSA Certified
- Footnotes: 2,14,18
|Mounting||Rigid||NEMA Design||NO DESIGN CODE|
|Orientation||HORIZONTAL||Starting Type||CAP START IND RUN|
|Assembly||F1 ONLY||KVA Code||N|
|Drive End Bearing||BALL||IP Code||43|
|Opposite End Bearing||BALL|
|Drive End Bearing Size||6203||Rotation||SELECTIVE CCW|
|Opposite End Bearing Size||6203|
|Weight||23 LB lbs|
