1/4HP MARATHON 1725RPM 56C 115/208-230V DP 1PH MOTOR K234

Catalog Number:  K234
Model Number:  056C17D2114
Description:  1/4HP,1725RPM,56C,115/208-230V,DP,1PH,60HZ
Ship Weight:  18 lbs.

This Marathon motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales team for particulars.

APPLICATIONS: General purpose with continuous duty rating. Standard operating characteristics and mechanical construction for use under usual service conditions without restriction to a particular application or type. Not for outdoor use.


  • Automatic overload protection
  • Capacitor start design for high starting torque
  • Ball bearings mechanically locked on shaft end
  • Heavy gauge steel frame and base
  • 1.35 Service Factor
  • UL Recognized and CSA Certified

Phase 1 Insulation Class B
Enclosure DP Ambient 40
Mounting C-Face Rigid NEMA Design NO DESIGN CODE
Orientation HORIZONTAL Starting Type CAP START IND RUN
Assembly F1 ONLY KVA Code N
Drive End Bearing BALL IP Code 22
Opposite End Bearing BALL
Drive End Bearing Size 6203 Rotation SELECTIVE CCW
Opposite End Bearing Size 6203
Weight 18 LB lbs
UL Recognized Construction and Protector
Thermal Protection Automatic Protector

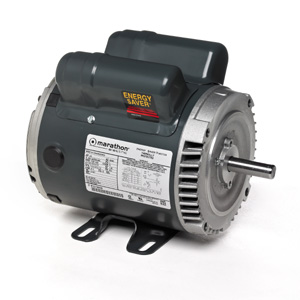

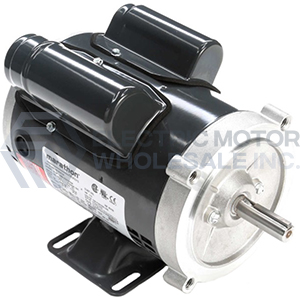

1/4HP MARATHON 1725RPM 56C 115/208-230V DP 1PH MOTOR K234
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: K234
Stock # K234
