1.5HP MARATHON 1800RPM 56H 208-230/460V TEFC 3PH MOTOR K167
1.5HP MARATHON 1800RPM 56H 208-230/460V TEFC 3PH MOTOR K167

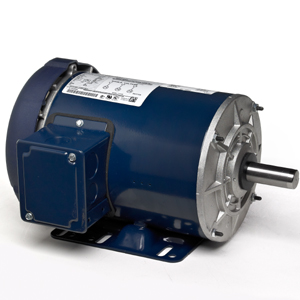

Picture is for reference only.
Part Number:
K167Manufacturer:
Marathon ObsoleteManufacturer Part Number:
K167This is item is for informational purposes only and cannot be purchased. Please contact customer service for more details.
Shipping Details
Dimensions:
12 x 20 x 12 inchesTechnical Details
Specifications
Application: | General Purpose |
Output HP: | 1.5 |
Output RPM: | 1300-1800 (4P) |
Frame Size NEMA: | 56H |
Mount NEMA: | With Base |
Enclosure NEMA: | TEFC |
Voltage: | 208, 230, 208-230/460, 460 |
Frequency (Hz): | 60 |
Efficiency: | IE2: High Eff. |
Thermal Protection: | None |
Additional Information
Catalog Number:
K167
Model Number:
5K49SN4118
Description:
1.5HP,1800RPM,56H,208-230/460V,TEFC,3PH,60HZ
Ship Weight:
35 lbs.
APPLICATIONS: General purpose with continuous duty rating. Standard operating characteristics and mechanical construction for use under usual service conditions without restriction to a particular application or type. Not for outdoor use.
FEATURES:
Rigid base
Totally enclosed fan-cooled
Heavy gauge steel frame
5/8" shaft output diameter
Ball bearings
56H, 143T, and 145T Combination Base with 12 mounting holes
1.25 Service Factor
Accepts C-Face kit catalog number A536
UL Recognized and CSA Certified
Footnotes: 5,19
This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.
Phase
3
Insulation Class
B
Frame
56H
Duty
Continuous
Enclosure
TEFC
Ambient
40
Mounting
WB
NEMA Design
B
Orientation
Horizontal or Vertical
Starting Type
Squirrel Cage Induction
Assembly
N/A
KVA Code
J
Drive End Bearing
BALL
IP Code
Opposite End Bearing
BALL
Drive End Bearing Size
6205
Opposite End Bearing Size
6203
Hazardous Location
N/R
Weight
35 LB lbs
CE
N/A
CSA
Y
UL
Y
Thermal Protection
None
