5HP MARATHON 1725RPM 184TC 230V TEFC 1PH MOTOR I315A

Catalog Number:  I315A
Model Number:  184TBFW7034
Description:  5HP,1725RPM,184TC,230V,TEFC,1PH,60HZ
Design: CAPACITOR START
Ship Weight:  21 lbs.

APPLICATIONS: General purpose with continuous duty rating. Standard operating characteristics and mechanical construction for use under usual service conditions without restriction to a particular application or type. Not for outdoor use.

FEATURES:

  • Manual overload protection
  • Capacitor Start/Capacitor Run design for reduced amperage
  • C-Face Footed (Rigid Base)
  • Ball bearings mechanically locked on shaft end
  • F1 Mounting only, cannot reassemble to F2
  • Heavy gauge steel construction
  • Pressure washer duty
  • Suitable for horizontal or vertical mounting
  • 1.0 Service Factor
  • UL Recognized and CSA Certified
  • Footnotes: 1,13,17

Phase 1 Insulation Class F
Frame 184TC Duty CONTINUOUS
Enclosure TEFC Ambient 40
Mounting C-Face Rigid NEMA Design NO DESIGN CODE
Orientation HORIZONTAL Starting Type CAP START CAP RUN
Assembly F1 ONLY KVA Code G
Drive End Bearing BALL IP Code 43
Opposite End Bearing BALL
Drive End Bearing Size 6206 Rotation SELECTIVE CCW
Opposite End Bearing Size 6205
Weight 101 LB lbs
CE N CSA Y
UL Recognized Construction
Thermal Protection Manual Protector

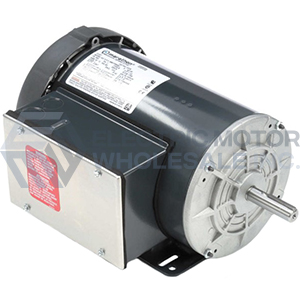

5HP MARATHON 1725RPM 184TC 230V TEFC 1PH MOTOR I315A
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: I315A
Stock # I315A
Price: $610.00
Compare At: $1,069.00
