3HP MARATHON 1725RPM 184TC 230V TEFC 1PH MOTOR I314A

Catalog Number:  I314A
Model Number:  184TBFW7041
Description:  3HP,1725RPM,184TC,230V,TEFC,1PH,60HZ
Design: CAPACITOR START
Ship Weight:  86 lbs.

This Marathon motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales office for particulars.

This Marathon Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS: General purpose with continuous duty rating. Standard operating characteristics and mechanical construction for use under usual service conditions without restriction to a particular application or type. Not for outdoor use.

FEATURES:

  • Manual overload protection
  • Capacitor Start/Capacitor Run design for reduced amperage
  • C-Face Footed (Rigid Base)
  • Ball bearings mechanically locked on shaft end
  • F1 Mounting only, cannot reassemble to F2
  • Heavy gauge steel construction
  • Pressure Washer Duty
  • Suitable for horizontal or vertical mounting
  • 1.15 Service Factor
  • UL Recognized and CSA Certified
  • Footnotes: 1,13,18

Phase 1 Insulation Class F
Frame 184TC Duty CONTINUOUS
Enclosure TEFC Ambient 40
Mounting C-Face Rigid NEMA Design L
Orientation HORIZONTAL Starting Type CAP START CAP RUN
Assembly F1 ONLY KVA Code H
Drive End Bearing BALL IP Code 43
Opposite End Bearing BALL
Drive End Bearing Size 6206 Rotation SELECTIVE CCW
Opposite End Bearing Size 6205
Weight 73 LB lbs
CE Y CSA Y
UL Recognized Construction
Thermal Protection Manual Protector

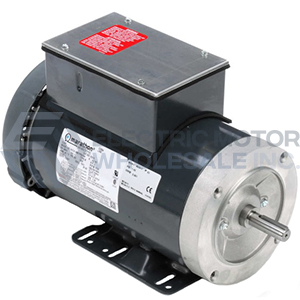

3HP MARATHON 1725RPM 184TC 230V TEFC 1PH MOTOR I314A
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: I314A
Stock # I314A
Price: $556.00
Compare At: $896.00
