7.5HP MARATHON 3450RPM 213T 208-230V TEFC 1PH MOTOR I224

Catalog Number:  I224
Model Number:  213TBFW7001
Description:  7.5HP,3450RPM,213T,208-230V,TEFC,1PH,60HZ
Design: CAPACITOR START
Ship Weight:  112 lbs.

APPLICATIONS: General purpose with continuous duty rating. Standard operating characteristics and mechanical construction for use under usual service conditions without restriction to a particular application or type. Not for outdoor use.

FEATURES:

  • No overload protection
  • Capacitor Start/Capacitor Run design for reduced amperage
  • Ball bearings
  • Will accept C-Face kit
  • Class F Insulation
  • Heavy gauge steel construction
  • 1.0 Service Factor
  • UL Recognized and CSA Certified
  • Footnotes: 1,14,17,F

Phase 1 Insulation Class F
Frame 213T Duty CONTINUOUS
Enclosure TEFC Ambient 40
Mounting Rigid NEMA Design L
Orientation HORIZONTAL Starting Type CAP START CAP RUN
Assembly F1 ONLY KVA Code G
Drive End Bearing BALL IP Code 43
Opposite End Bearing BALL
Drive End Bearing Size 6307 Rotation SELECTIVE CCW
Opposite End Bearing Size 6206
Weight 112 LB lbs
CE Y CSA Y
UL Recognized Construction
Thermal Protection

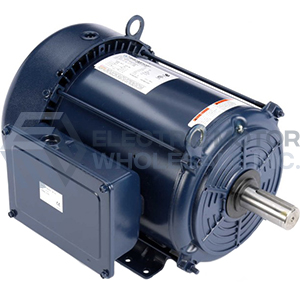

7.5HP MARATHON 3450RPM 213T 208-230V TEFC 1PH MOTOR I224
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: I224
Stock # I224
Price: $698.00
Compare At: $1,224.00
