3HP MARATHON 3450RPM 145T 208-230V TEFC 1PH MOTOR I205

Catalog Number:  I205
Model Number:  145TBFR5302
Description:  3HP,3450RPM,145T,208-230V,TEFC,1PH,60HZ
Design: CAPACITOR START
Ship Weight:  50 lbs.

This Marathon motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales team for particulars.

APPLICATIONS: General purpose with continuous duty rating. Standard operating characteristics and mechanical construction for use under usual service conditions without restriction to a particular application or type. Not for outdoor use.

FEATURES:

  • Manual overload protection
  • Capacitor Start/Capacitor Run design for reduced amperage
  • Ball bearings
  • Will accept C-Face kit
  • Heavy gauge steel construction
  • 1.15 Service Factor
  • UL Recognized and CSA Certified
  • Footnotes: 1,14,18

Phase 1 Insulation Class B
Frame 145T Duty CONTINUOUS
Enclosure TEFC Ambient 40
Mounting Rigid NEMA Design L
Orientation HORIZONTAL Starting Type CAP START CAP RUN
Assembly F1 ONLY KVA Code H
Drive End Bearing BALL IP Code 43
Opposite End Bearing BALL
Drive End Bearing Size 6205 Rotation SELECTIVE CCW
Opposite End Bearing Size 6203
Weight 50 LB lbs
CE Y CSA Y
UL Recognized Construction
Thermal Protection Manual Protector

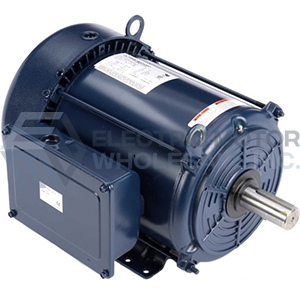

3HP MARATHON 3450RPM 145T 208-230V TEFC 1PH MOTOR I205
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: I205
Stock # I205
Price: $388.00
Compare At: $680.00
