3HP MARATHON 3450RPM 145T 208-230V DP 1PH MOTOR I145

Catalog Number:  I145
Model Number:  145TBDR5303
Description:  3HP,3450RPM,145T,208-230V,DP,1PH,60HZ
Design: CAPACITOR START
Ship Weight:  40 lbs.

This Leeson motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales team for particulars.

APPLICATIONS: General purpose with continuous duty rating. Standard operating characteristics and mechanical construction for use under usual service conditions without restriction to a particular application or type. Not for outdoor use.

FEATURES:

  • No overload protection
  • Capacitor Start/Capacitor Run design for reduced amperage
  • Heavy gauge steel frame and base
  • Ball bearings
  • 1.0 Service Factor
  • UL Recognized and CSA Certified
  • Footnotes: 1

Phase 1 Insulation Class B
Frame 145T Duty CONTINUOUS
Enclosure DP Ambient 40
Mounting Rigid NEMA Design NO DESIGN CODE
Orientation HORIZONTAL Starting Type CAP START CAP RUN
Assembly F1 ONLY KVA Code G
Drive End Bearing BALL IP Code 22
Opposite End Bearing BALL

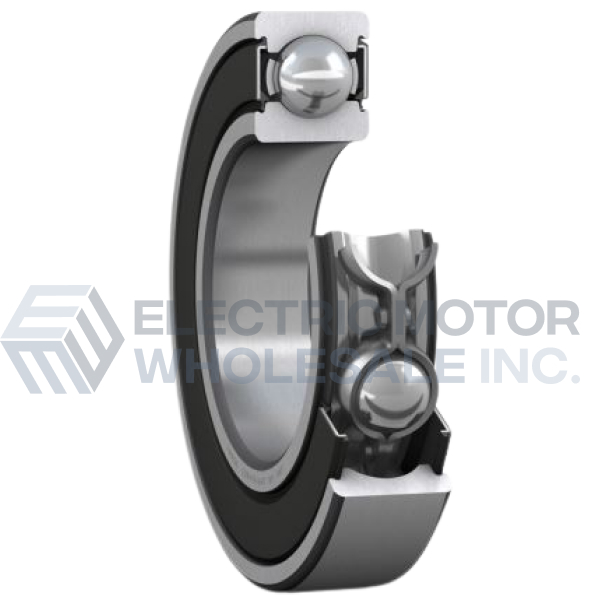

Drive End Bearing Size 6205 Rotation SELECTIVE CCW
Opposite End Bearing Size 6203
Weight 40 LB lbs
CE Y CSA Y
UL Recognized Construction
Thermal Protection

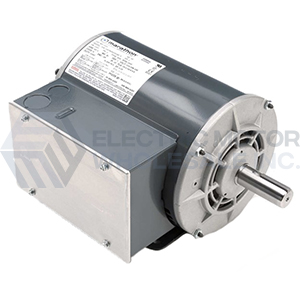

3HP MARATHON 3450RPM 145T 208-230V DP 1PH MOTOR I145
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: I145
Stock # I145
Price: $268.00
Compare At: $472.00
