500HP MARATHON 1800RPM 449TS 460V DP 3PH MOTOR H816
500HP MARATHON 1800RPM 449TS 460V DP 3PH MOTOR H816

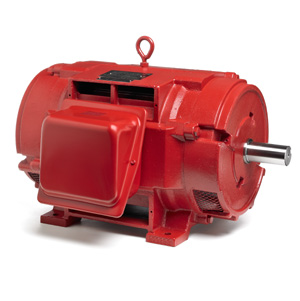

Picture is for reference only.
Part Number:
H816Manufacturer:
Marathon ObsoleteManufacturer Part Number:
H816Click below to request an agent review potential options.
Shipping Details
Free No Rush Shipping
Dimensions:
12 x 20 x 12 inchesTechnical Details
Specifications
Application: | General Purpose, Fire Pump |
Output HP: | 500 |
Output RPM: | 1300-1800 (4P) |
Frame Size NEMA: | 447-9TS |
Mount NEMA: | With Base |
Enclosure NEMA: | DP, ODP, OPEN |
Voltage: | 460 |
Frequency (Hz): | 50, 60 |
Efficiency: | IE2: High Eff. |
Thermal Protection: | None |
Additional Information
Catalog Number:
H816
Model Number:
449TSTDN7027
Description:
500HP,1800RPM,449TS,460V,DP,3PH,60HZ,FIRE PUMP
Ship Weight:
2695 lbs.
This Marathon Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team .
APPLICATIONS: For use on pumps designed for fire pump duty and installed per NFPA-20. These drip proof motors are intended for installation in relatively clean and dry environments. Fire Pump motors are not recommended for use with variable frequency drives.
FEATURES:
Cast iron frame
Rigid base
Dripproof
2 3/8" shaft diameter
UL File EX5190, CSA File LR2025 and CE Mark
Ball bearings
1.15 Service Factor
Red paint on 25 HP through 200 HP
NEMA Design B, Code G or less
Dual voltage motors have 12 leads, suitable for wye-delta or across the line start on either voltage, or part winding start on low voltage
Class F insulation
Will not accept C-Face kits
Normally closed Thermostats installed
230/460 and 460 Volt models rated for 50Hz at next lower HP
Phase
3
Insulation Class
F
Frame
449TS
Duty
CONTINUOUS
Enclosure
DP
Ambient
50
Mounting
Rigid
NEMA Design
B
Orientation
HORIZONTAL
Starting Type
PWS & YDRUN
Assembly
F1 (F2 Modification Available)
KVA Code
G
Drive End Bearing
BALL
IP Code
12
Opposite End Bearing
BALL
Drive End Bearing Size
6314
Opposite End Bearing Size
6314
Weight
2695 LB lbs
CE
Y
CSA
Y
UL
UL Listed
Thermal Protection
