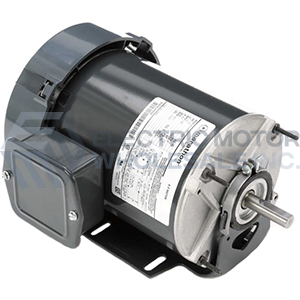

1/6HP MARATHON 1140RPM 48 115V TEFC 1PH MOTOR H233
|Design:||SPLIT PHASE, SINGLE-SPEED|
|Ship Weight:||23 lbs.|
This Marathon motor is Non-Returnable.
Please take the time to identify your motor needs. It is the customer’s responsibility to review all product information provided to determine the correct mechanical and electrical characteristics needed for your application. If you need further assistance with this product to identify your product specifications, please contact our customer service department to answer any questions you may have.
APPLICATIONS: Designed for applications like commercial fans and blowers, direct and belt drive air handlers and exhaust fans.
SPLIT-PHASE: A single-phase motor that consists of a running winding, starting winding, and centrifugal switch. The reactance difference in the windings creates separate phases, which produce the rotating magnetic field that starts the rotor.
- No overload protection
- Split Phase design
- Ball bearing
- 1.0 Service Factor
- Heavy gauge steel frame and base
- UL Recognized and CSA Certified
|Orientation||Horizontal or Vertical||Starting Type||Switch and Mech|
|Drive End Bearing||BALL||IP Code||N/A|
|Opposite End Bearing||BALL|
|Drive End Bearing Size||6203||Rotation||Select Counter clockwise|
|Opposite End Bearing Size||6203||Hazardous Location||N/R|
|Weight||23 LB lbs|
