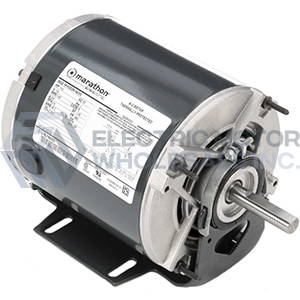

1/2HP MARATHON 1725/1140RPM 56 230V DP 1PH MOTOR H133
|Ship Weight:||22 lbs.|
This Marathon motor is Non-Returnable.
Please take the time to identify your motor needs. It is the customer’s responsibility to review all product information provided to determine the correct mechanical and electrical characteristics needed for your application. If you need further assistance with this product to identify your product specifications, please contact our customer service department to answer any questions you may have.
APPLICATIONS: Designed for applications like commercial fans and blowers, direct and belt drive air handlers and exhaust fans.
SPLIT-PHASE: A single-phase motor that consists of a running winding, starting winding, and centrifugal switch. The reactance difference in the windings creates separate phases, which produce the rotating magnetic field that starts the rotor.
- Automatic overload protection
- Split phase design
- Ball bearing
- Variable torque
- 1.0 Service Factor
- 5/8” Thru-bolts, shaft end
- Heavy gauge steel frame and base
- UL Recognized and CSA Certified
- Footnotes: 17,31
|Orientation||Horizontal or Vertical||Starting Type||Switch and Mech|
|Drive End Bearing||BALL||IP Code||N/A|
|Opposite End Bearing||BALL|
|Drive End Bearing Size||6203||Rotation||Counterclockwise|
|Opposite End Bearing Size||6203||Hazardous Location||N/R|
|Weight||22 LB lbs|
