1/2HP MARATHON 1725/1140RPM 56 115V DP 1PH MOTOR H131

Catalog Number:  H131
Model Number:  5KH39QN9631T
Description:  1/2HP,1725/1140RPM,56,115V,DP,1PH,60HZ
Design: Two-Speed
Ship Weight:  22 lbs.

This Marathon motor is Non-Returnable.

Please take the time to identify your motor needs. It is the customer’s responsibility to review all product information provided to determine the correct mechanical and electrical characteristics needed for your application. If you need further assistance with this product to identify your product specifications, please contact our customer service department to answer any questions you may have.

APPLICATIONS: Designed for applications like commercial fans and blowers, direct and belt drive air handlers and exhaust fans.

SPLIT-PHASE: A single-phase motor that consists of a running winding, starting winding, and centrifugal switch. The reactance difference in the windings creates separate phases, which produce the rotating magnetic field that starts the rotor.

FEATURES:

  • Automatic overload protection
  • Two-speed
  • Split phase design
  • Ball bearing
  • Variable torque
  • 1.0 Service Factor
  • 5/8” Thru-bolts, shaft end
  • Heavy gauge steel frame and base
  • UL Recognized and CSA Certified
  • Footnotes: 17,31

Phase 1 Insulation Class B
Frame 56 Duty Continuous
Enclosure DP Ambient 40
Mounting RB NEMA Design N/A
Orientation Horizontal or Vertical Starting Type Switch and Mech
Assembly N/A KVA Code L
Drive End Bearing BALL IP Code N/A
Opposite End Bearing BALL
Drive End Bearing Size 6203 Rotation Counterclockwise
Opposite End Bearing Size 6203 Hazardous Location N/R
Weight 22 LB lbs
CE N/A CSA Y
UL Y
Thermal Protection Automatic

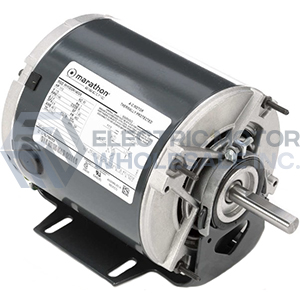

1/2HP MARATHON 1725/1140RPM 56 115V DP 1PH MOTOR H131
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: H131
Stock # H131
Price: $225.00
Compare At: $362.00
