50HP MARATHON 1800RPM 326JP DP 230/460V 3PH MOTOR GT2437

Catalog Number: GT2437
Model Number: 326TTDCA6037
Description: 50HP,1800RPM,326JP,230/460V,DP,3PH,60/50HZ
Ship Weight: 710 lbs.

This Marathon Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team

APPLICATIONS: Close-coupled pump where the pump impeller is mounted directly on the
motor shaft in environments that are relatively clean and dry.

FEATURES:

  • C-Face with rigid base
  • Cast Iron Frame
  • Meets or exceeds NEMA Premium® efficiencies
  • NEMA Premium® models are in compliance with EISA2007
  • Inverter Duty 10:1 Variable Torque and 2:1 Constant Torque, 1.0 SF
  • 1.15 Service Factor
  • Class F Insulation
  • Standard assembly F1, reversible to F2 assembly
  • Nameplated 60/50 hertz, 190/380 volts at next lower HP
  • Three year warranty

This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.

Phase 3 Insulation Class F
Frame 326JP Duty CONTINUOUS
Enclosure DP Ambient 40
Mounting C-Face Rigid NEMA Design B
Orientation HORIZONTAL Starting Type Y START D RUN OR INV
Assembly F1 (F2 Modification Available) KVA Code F
Drive End Bearing BALL IP Code 12
Opposite End Bearing BALL
Drive End Bearing Size 6312
Opposite End Bearing Size 6311
Weight 710 LB lbs Inverter Speed Range VARIABLE 10:1
CE Y CSA Y
UL Recognized Construction
Thermal Protection

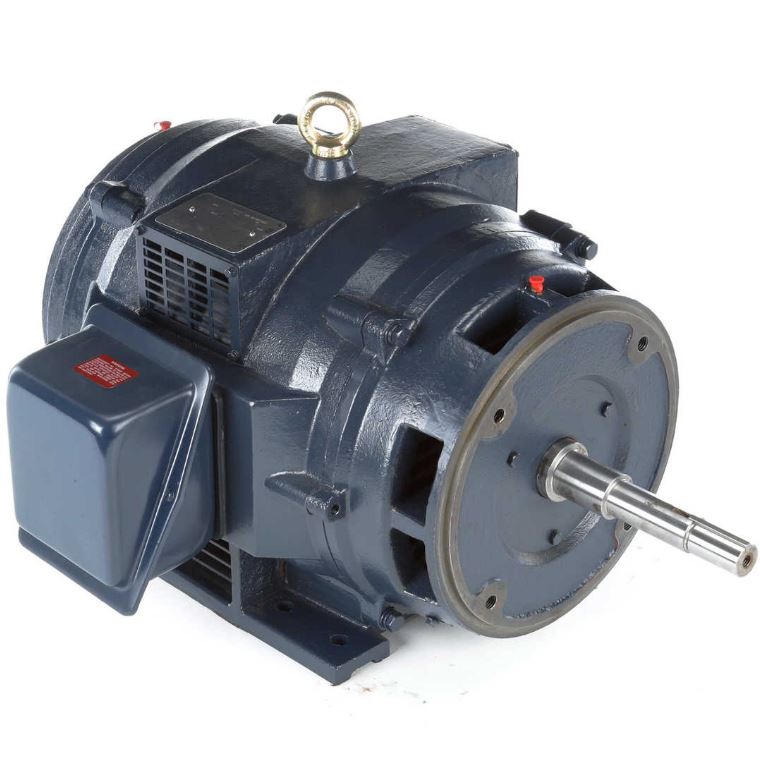

50HP MARATHON 1800RPM 326JP DP 230/460V 3PH MOTOR GT2437
