Product Overview

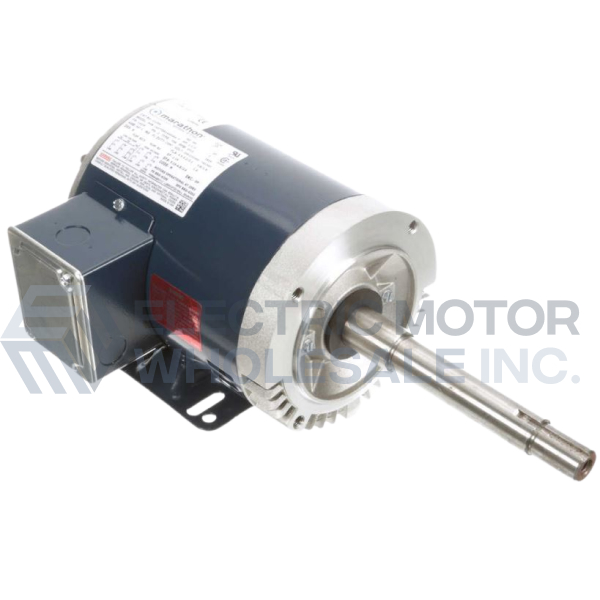

GT2404 MARATHON 1.5HP Three Phase DP Globetrotter Premium Close-Coupled JP Pump Motor designed for use with close-coupled pumps where the pump impeller is mounted directly on the motor shaft in environments that are relatively clean and dry.

Part Number:

GT2404

Model/Spec Number:

145TTDR16330

Manufacturer:

Regal Rexnord Commercial

Technical Details

Specifications

Brand	Marathon
Application	Closed Coupled
Output HP	1.5//1
Output KW	1.1//0.75
Output RPM	1755//1465
Frame Size NEMA	145JP

Documentation

Product Information Packet

Additional Information

APPLICATIONS: Close-coupled pump where the pump impeller is mounted directly on the motor shaft in environments that are relatively clean and dry.

FEATURES:

Meets or exceeds NEMA Premium® efficiencies
NEMA Premium® models are in compliance with EISA2007
Class F Insulation
Nameplated 60/50 hertz, 190/380 volts at next lower HP

This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.
