3/4HP MARATHON 3450RPM 56C 115/208-230V TEFC 1PH MOTOR G516

Catalog Number:  G516
Model Number:  056C34F5323
Description:  3/4HP,3450RPM,56C,115/208-230V,TEFC,1PH,60HZ
Design: CAPACITOR START
Ship Weight:  26 lbs.

APPLICATIONS: General purpose with continuous duty rating. Standard operating characteristics and mechanical construction for use under usual service conditions without restriction to a particular application or type. Not for outdoor use.

FEATURES:

  • No overload protection
  • Capacitor Start Induction Run design
  • C-Face Footless
  • Heavy gauge steel construction
  • Ball bearings mechanically locked on shaft end
  • Suitable for horizontal or vertical mounting
  • 1.15 Service Factor
  • UL Recognized and CSA Certified
  • Footnotes: 2,18

Phase 1 Insulation Class B
Frame 56C Duty CONTINUOUS
Enclosure TEFC Ambient 40
Mounting C-Face Footless NEMA Design N
Orientation HORIZONTAL Starting Type CAP START IND RUN
Assembly F1 ONLY KVA Code M
Drive End Bearing BALL IP Code 43
Opposite End Bearing BALL
Drive End Bearing Size 6203 Rotation SELECTIVE CCW
Opposite End Bearing Size 6203
Weight 26 LB lbs
CE N CSA Y
UL Recognized Construction
Thermal Protection

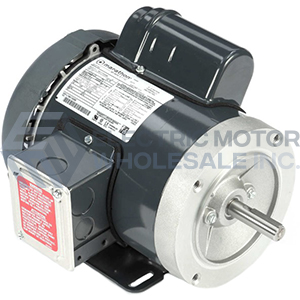

3/4HP MARATHON 3450RPM 56C 115/208-230V TEFC 1PH MOTOR G516
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: G516
Stock # G516
Price: $156.00
Compare At: $273.00
