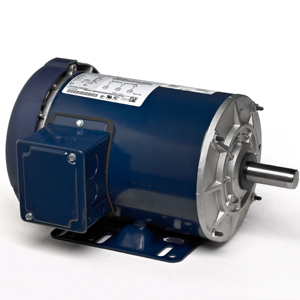

3HP MARATHON 3600RPM 56H 208-230/460V TEFC 3PH MOTOR G385

APPLICATIONS: General purpose with continuous duty rating. Standard operating characteristics and mechanical construction for use under usual service conditions without restriction to a particular application or type. Not for outdoor use. FEATURES: Rigid base Heavy gauge steel frame Totally enclosed fan-cooled 5/8" shaft output diameter Ball bearings Rated 60/50 hertz, 190/380 or 380 volt at next lower horsepower Accepts C-Face kit catalog number A437 56H, 143T, and 145T Combination Base with 12 mounting holes UL Recognized and CSA Certified Footnotes: 5, 68 This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.

Phase 3 Insulation Class B Frame 56H Duty CONTINUOUS Enclosure TEFC Ambient 40 Mounting Rigid NEMA Design B Orientation HORIZONTAL Starting Type ACROSS THE LINE Assembly F1 ONLY KVA Code K Drive End Bearing BALL IP Code 43 Opposite End Bearing BALL Drive End Bearing Size 6205 Opposite End Bearing Size 6203 Weight 38 LB CE n CSA Y UL Recognized Construction Thermal Protection
