1/3HP MARATHON 1725RPM 56 115/208-230V TEFC 1PH MOTOR G332

Catalog Number:  G332
Model Number:  056C17F2049
Description:  1/3HP,1725RPM,56,115/208-230V,TEFC,1PH,60HZ
Ship Weight:  20 lbs.

APPLICATIONS: General purpose with continuous duty rating. Standard operating characteristics and mechanical construction for use under usual service conditions without restriction to a particular application or type. Not for outdoor use.


  • Manual overload protection
  • Capacitor Start Induction Run design
  • Ball bearings
  • Heavy gauge steel construction
  • 1.15 Service Factor
  • UL Recognized and CSA Certified
  • Footnotes: 2,18

Phase 1 Insulation Class B
Frame 56 Duty CONTINUOUS
Enclosure TEFC Ambient 40
Mounting Rigid NEMA Design NO DESIGN CODE
Orientation HORIZONTAL Starting Type CAP START IND RUN
Assembly F1 ONLY KVA Code L
Drive End Bearing BALL IP Code 43
Opposite End Bearing BALL
Drive End Bearing Size 6203 Rotation SELECTIVE CCW
Opposite End Bearing Size 6203
Weight 20 LB lbs
UL Recognized Construction and Protector
Thermal Protection Manual Protector

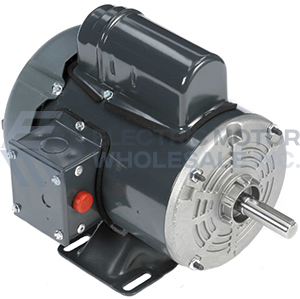

1/3HP MARATHON 1725RPM 56 115/208-230V TEFC 1PH MOTOR G332
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: G332
Stock # G332
Price: $168.00
Compare At: $270.00
