2HP MARATHON 3600RPM 145T 575V TEFC 3PH MOTOR E843

Catalog Number:  E843
Model Number:  145TTFR4007
Description:  2HP,3600RPM,145T,575V,TEFC,3PH,60HZ
Ship Weight:  38 lbs.

This Marathon motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales team for particulars.







APPLICATIONS: General purpose with continuous duty rating. Standard operating characteristics and mechanical construction for use under usual service conditions without restriction to a particular application or type. Not for outdoor use.

FEATURES:

  • Rigid base
  • Totally enclosed fan-cooled
  • Heavy gauge steel frame
  • 7/8" shaft output diameter
  • Ball bearings
  • Accepts C-Face kit catalog number A438
  • Efficiency levels meet EISA requirements
  • UL Recognized and CSA Certified

This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.

Phase 3 Insulation Class F
Frame 145T Duty CONTINUOUS
Enclosure TEFC Ambient 40
Mounting Rigid NEMA Design B
Orientation HORIZONTAL Starting Type ACROSS THE LINE
Assembly F1 ONLY KVA Code L
Drive End Bearing BALL IP Code 43
Opposite End Bearing BALL
Drive End Bearing Size 6205
Opposite End Bearing Size 6203
Weight 38 LB
CE Y CSA Y
UL Recognized Construction
Thermal Protection

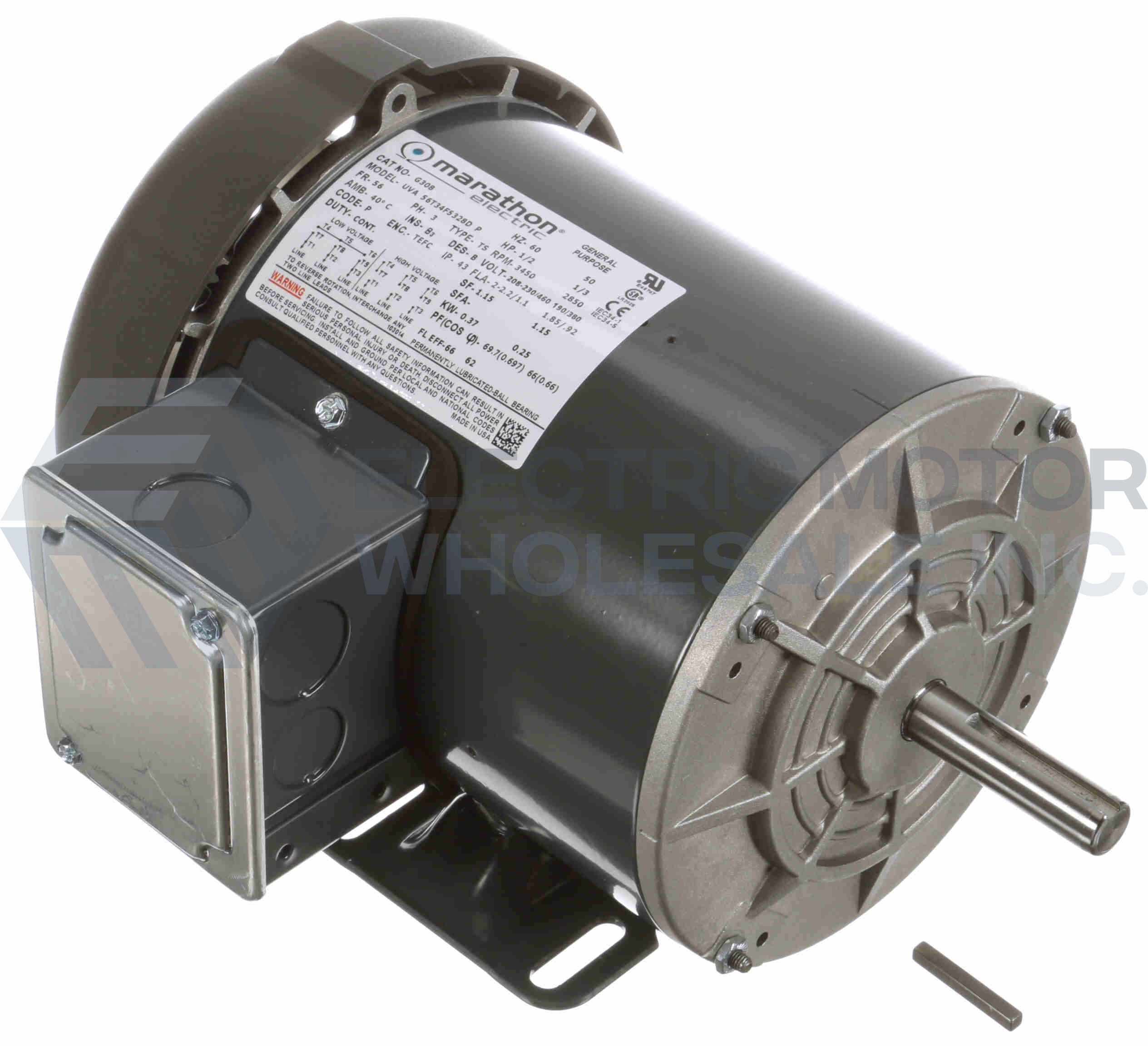

2HP MARATHON 3600RPM 145T 575V TEFC 3PH MOTOR E843
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: E843
Stock # E843
