250HP MARATHON 1800RPM 445T 460V TEFC 3PH MOTOR E287
250HP MARATHON 1800RPM 445T 460V TEFC 3PH MOTOR E287

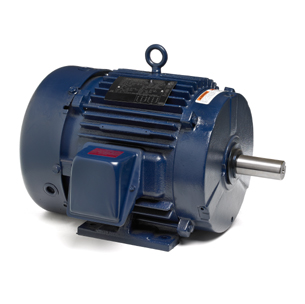

Picture is for reference only.
Part Number:
E287Manufacturer:
Marathon ObsoleteManufacturer Part Number:
E287This Marathon motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales team for particulars.
This is item is for informational purposes only and cannot be purchased. Please contact customer service for more details.
Shipping Details
Dimensions:
12 x 20 x 12 inchesTechnical Details
Specifications
Application: | General Purpose |
Output HP: | 250 |
Output RPM: | 1300-1800 (4P) |
Frame Size NEMA: | 444-5T |
Mount NEMA: | With Base |
Enclosure NEMA: | TEFC |
Voltage: | 460 |
Frequency (Hz): | 50, 60 |
Efficiency: | IE3: Premium |
Thermal Protection: | None |
Additional Information
Catalog Number:
E287
Model Number:
445TTFN6040
Description:
250HP,1800RPM,445T,460V,TEFC,3PH,60/50HZ
Ship Weight:
2375 lbs.
APPLICATIONS: For use on compressors, pumps, conveyors, blowers, and other machinery in dirty and dusty environments. Substantial energy savings can be realized when using this high efficiency motor. Guaranteed efficiencies offer an e X tra R eturn on your I nvestment when using this premium efficiency motor on high cycle or long run time applications.
FEATURES:
Cast Iron Frame
Rigid base
Totally enclosed fan-cooled
3 3/8" shaft output diameter
Meets or exceeds NEMA Premium® efficiencies
Suitable for use on a VFD, 20:1 - Requires larger fan
Class H Insulation
1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power
F1 conduit box on Rigid Base
Shaft slinger
Ball bearings
Roller Bearing on shaft end for belted load only
XRI, Ultra High Efficiency Design
UL Recognized, CSA Certified and CE Mark
Three year warranty
Footnotes: RB,X
This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.
