20HP MARATHON 3600RPM 254JM DP 200V 3PH MOTOR E190

Catalog Number: E190
Model Number: 254TTDX4007
Description: 20HP,3600RPM,254JM,200V,DP,3PH,60HZ
Ship Weight:  204 lbs.

This Marathon motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales team for particulars.

This Marathon Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team

APPLICATIONS: Close-coupled pumps where the pump impeller is mounted directly on the
motor shaft in environments that are relatively clean and dry.

FEATURES:

  • C-Face Footed (Rigid Base)
  • NEMA JM pump shaft dimensions
  • JM frame has rigid base
  • Ball bearings, mechanically locked on shaft end
  • Continuous duty
  • Drip Cover not included
  • 1.15 Service Factor
  • UL Recognized and CSA Certified
  • UL Listed for Fire Pump applications
  • Efficiency levels meet EISA requirements

This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.

Phase 3 Insulation Class B
Frame 254JM Duty CONTINUOUS
Enclosure DP Ambient 40
Mounting C-Face Rigid NEMA Design B
Orientation HORIZONTAL Starting Type ACROSS THE LINE
Assembly F1 (F2 Modification Available) KVA Code F
Drive End Bearing BALL IP Code 12
Opposite End Bearing BALL
Drive End Bearing Size 6309
Opposite End Bearing Size 6208
Weight 204 LB lbs
CE Y CSA Y
UL Recognized Construction
Thermal Protection

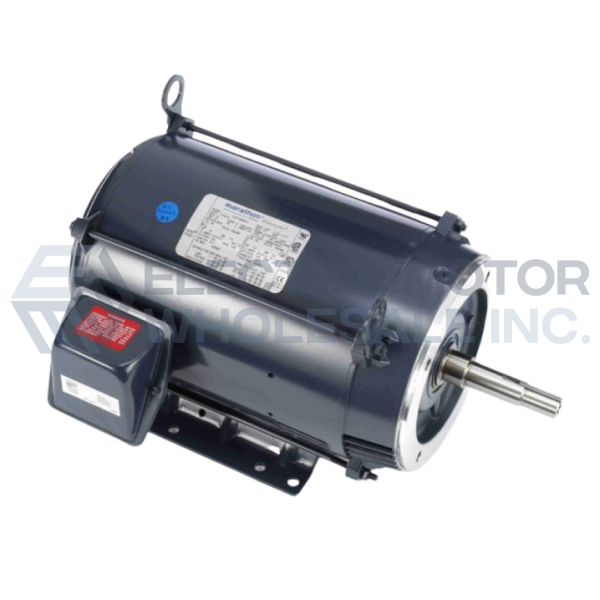

20HP MARATHON 3600RPM 254JM DP 200V 3PH MOTOR E190
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: E190
Stock # E190
Price: $1,074.00
Compare At: $2,473.00
