7.5HP MARATHON 3600RPM 184JM DP 230/460V 3PH MOTOR E109A

Catalog Number: E109A
Model Number: 184TTDW14001
Description: 7.5HP,3600RPM,184JM,230/460V,DP,3PH,60/50HZ
Ship Weight:  81 lbs.

This Marathon Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team

APPLICATIONS: Close-coupled pumps where the pump impeller is mounted directly on the
motor shaft in environments that are relatively clean and dry.

FEATURES:

  • C-Face with Rigid Base
  • NEMA JM pump shaft dimensions
  • JM frame has rigid base, drip cover not included
  • Ball bearings, mechanically locked on shaft end
  • Continuous duty
  • 1.15 Service Factor
  • F1 Mounting only, cannot reassemble to F2
  • Rated 60/50 hertz, 190/380 or 380 volt at next lower horsepower
  • UL Recognized and CSA Certified
  • Not UL Listed for Fire Pump applications
  • Efficiency levels meet EISA requirements
  • Footnotes: 13, 68, 98

This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.

Phase 3 Insulation Class F
Frame 184JM Duty CONTINUOUS
Enclosure DP Ambient 40
Mounting C-Face Rigid NEMA Design B
Orientation HORIZONTAL Starting Type ACROSS THE LINE
Assembly F1 ONLY KVA Code H
Drive End Bearing BALL IP Code 22
Opposite End Bearing BALL
Drive End Bearing Size 6207
Opposite End Bearing Size 6205
Weight 81 LB lbs
CE Y CSA Y
UL Recognized Construction
Thermal Protection

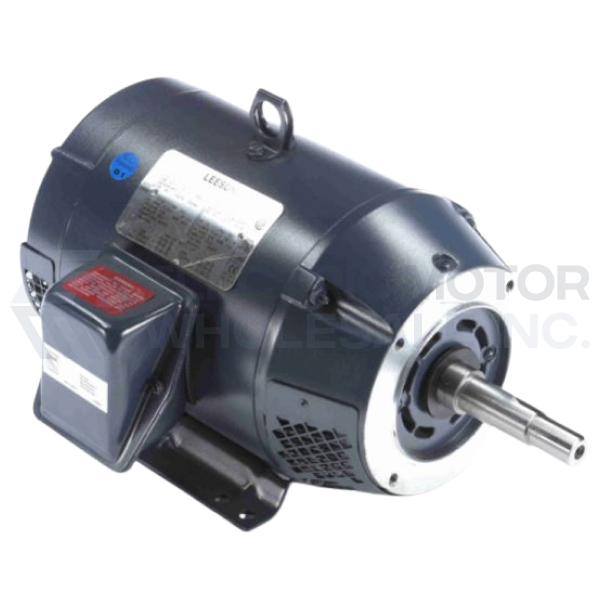

7.5HP MARATHON 3600RPM 184JM DP 230/460V 3PH MOTOR E109A
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: E109A
Stock # E109A
