2HP MARATHON 3600RPM 56HC 230/460V TEFC 3PH MOTOR D395A

Catalog Number:  D395A
Model Number:  056T34F99012
Description:  2HP,3600RPM,56HC,230/460V,TEFC,3PH,60/50HZ
Ship Weight:  45 lbs.

MARATHON Three Phase General Purpose Motor general purpose use on gear reducers, pumps, machine tools, and other direct-coupled equipment installed in damp, dusty, or dirty environments.

FEATURES:

  • 5/8" Keyed output shaft
  • Premium efficiency rating with a three year warranty
  • Four in One design
  • Ball bearings, mechanically locked on shaft end
  • Class F Insulation
  • 1.15 Service Factor
  • 2:1 constant speed range
  • Rated 60/50 hertz, 190/380 or 380 volt at next lower horsepower
  • 56H, 143T, and 145T Combination Base with 12 mounting holes
  • F1 Mounting only, cannot reassemble to F2
  • Accept brake kits
  • UL Recognized and CSA Certified

Additional features for "Four-In-One" motors only:

  • CR200 Corona resistant magnet wire
  • Bolt-on, removable rigid base
  • Suitable for horizontal and vertical mounting
  • Will accept drip cover kits

This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.

Nameplate - 60 HZ

Hertz 60   HP 2
KW 1.49   RPM 3600
FL Eff 85.5   Volts 230/460
FL Amps 5/2.5   SF 1.15
Nameplate - 50 HZ

Hertz 50   HP 1 1/2
KW 1.12   RPM 3000
FL Eff 85.5   Volts 190/380
FL Amps 4.6/2.3   SF 1.15
Motor Wt. 45 LB   UL Recognized Construction
CE Y   CSA Y
Phase 3   Insulation Class F
Frame Size 56HC   Enclosure TEFC
Ambient 40   Mount Type C-Face - Removable Base
Therm.Prot. NOT   Orientation HORIZONTAL OR UP OR DOWN
Nema Design B   Assembly F1 ONLY
Starting Method ACROSS THE LINE   PE Bearing Type BALL
KVA Code K   OPE Bearing Type BALL
IP Code 43   Drive End Bearing Size 6205

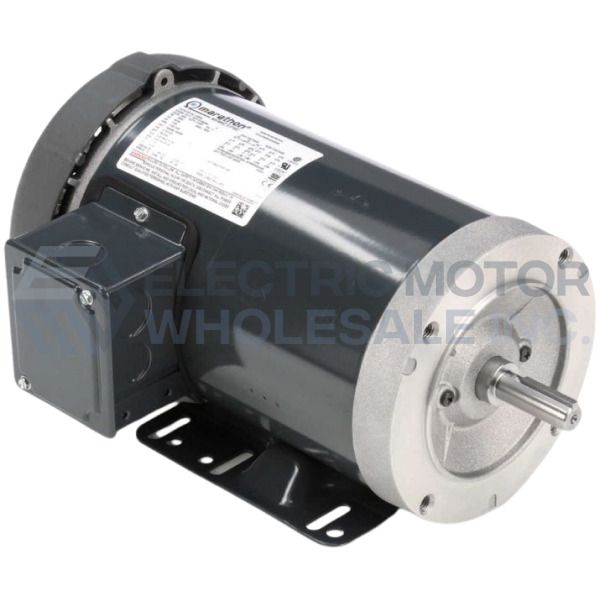

2HP MARATHON 3600RPM 56HC 230/460V TEFC 3PH MOTOR D395A
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: D395A
Stock # D395A
Price: $366.00
Compare At: $842.00
