1/2HP MARATHON 3450RPM 56J TEFC 115/230V 1PH MOTOR C465

Catalog Number: C465
Model Number: 5KC39QN3218X
Description: 1/2HP,3450RPM,56J,115/230V,TEFC,1PH,60HZ
Design:  Capacitor Start
Ship Weight:  19 lbs.


  • Capacitor start design for high starting torque
  • 1.15 Service Factor
  • Double sealed ball bearings, mechanically locked on shaft end
  • Fixed CW Rotation, viewing opposite shaft (or lead end) of motor
  • Automatic reset thermal protector
  • 56J = 416 stainless steel threaded shaft with slinger
  • Drip cover not included
  • UL Recognized and CSA Certified
  • Footnote: 15

This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.

Phase 1 Insulation Class B
Frame 56J Duty Continuous
Enclosure TEFC Ambient 40
Mounting N/R NEMA Design N/A
Orientation Horizontal or Vertical Starting Type Switch and Mech
Assembly N/A KVA Code L
Drive End Bearing LOCKED IP Code N/A
Opposite End Bearing BALL
Drive End Bearing Size 6203 Rotation Clockwise
Opposite End Bearing Size 6203 Hazardous Location N/R
Weight 19 LB lbs
Thermal Protection Automatic

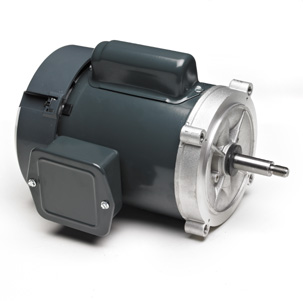

1/2HP MARATHON 3450RPM 56J TEFC 115/230V 1PH MOTOR C465
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: C465
Stock # C465
