1/4HP MARATHON 1425RPM 48 110/220V DP 1PH MOTOR C460

Catalog Number:  C460
Model Number:  5KC36LN19X
Description:  1/4HP,1425RPM,48,115/230V,DP,1PH,50HZ
Ship Weight:  18 lbs.

APPLICATIONS: General purpose with continuous duty rating. Standard operating characteristics and mechanical construction for use under usual service conditions without restriction to a particular application or type. Not for outdoor use.


  • Automatic overload protection
  • Capacitor start design for high starting torque
  • Ball bearings
  • Shaft extension 1-1/2” long by 1/2” diameter
  • 1.35 Service Factor
  • Designed for 50 Hz operation
  • Heavy gauge steel frame and base
  • UL Recognized and CSA Certified
  • Footnotes: 7,20,50


Phase 1 Insulation Class B
Frame 48 Duty Continuous
Enclosure DP Ambient 40
Mounting RB NEMA Design N/A
Orientation Horizontal or Vertical Starting Type Switch and Mech
Assembly N/A KVA Code N
Drive End Bearing BALL IP Code N/A
Opposite End Bearing BALL
Drive End Bearing Size 6203 Rotation Counterclockwise
Opposite End Bearing Size 6203 Hazardous Location N/R
Weight 18 LB lbs
Thermal Protection Automatic

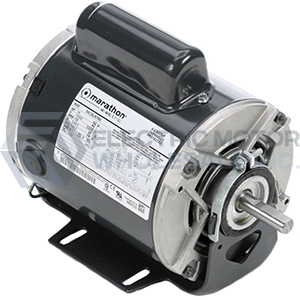

1/4HP MARATHON 1425RPM 48 110/220V DP 1PH MOTOR C460
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: C460
Stock # C460
Price: $175.00
Compare At: $281.00
