1/2HP MARATHON 1140RPM 56C 115/230V DP 1PH MOTOR C1422A

Catalog Number:  C1422A
Model Number:  056B11D15504
Description:  1/2HP,1140RPM,56C,115/230V,DP,1PH,60HZ
Design: CAPACITOR START
Ship Weight:  40 lbs.

APPLICATIONS: General purpose with continuous duty rating. Standard operating characteristics and mechanical construction for use under usual service conditions without restriction to a particular application or type. Not for outdoor use.

FEATURES:

  • No overload protection
  • Heavy gauge steel frame and base
  • C-Face Footless
  • Capacitor Start Induction Run design
  • Ball bearings
  • 1.25 Service Factor
  • UL Recognized and CSA Certified

Phase 1 Insulation Class B
Frame 56C Duty CONTINUOUS
Enclosure DP Ambient 40
Mounting C-Face Footless NEMA Design NO DESIGN CODE
Orientation HORIZONTAL Starting Type CAP START CAP RUN
Assembly F1 OUT ODE BRKT RADIAL KVA Code K
Drive End Bearing BALL IP Code 22
Opposite End Bearing BALL
Drive End Bearing Size N/A Rotation SELECTIVE CCW
Opposite End Bearing Size N/A
Weight N/A lbs
CE Y CSA Y
UL Recognized Construction
Thermal Protection

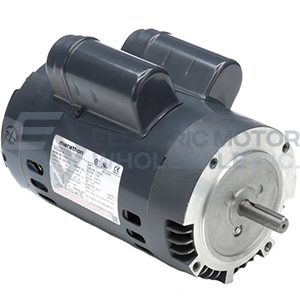

1/2HP MARATHON 1140RPM 56C 115/230V DP 1PH MOTOR C1422A
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: C1422A
Stock # C1422A
Price: $308.00
Compare At: $507.00
