Electric Motors

/

Discontinued Electric Motors

/

Marathon Discontinued Motors

/

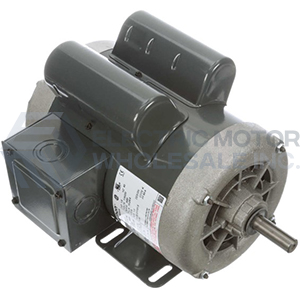

1.5HP MARATHON 3450RPM 56 OPEN 1PH MOTOR 9034A

1.5HP MARATHON 3450RPM 56 OPEN 1PH MOTOR 9034A

Picture is for reference only.

Part Number:

9034A

Model/Spec Number:

056B34D99011

Manufacturer:

Marathon Obsolete
9034A MARATHON 1.5HP Single Phase General Purpose Motor for use with applications in relatively clean and dry environments. Ideally suited for fans, pumps, conveyors and other applications suited to a 1.0 service factor.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

38 lbs

Dimensions:

11 x 17 x 13 inches

HS Code:

8501.40.0000

UPC:

722856078445

Technical Details

Application:

General Purpose

Output HP:

1.5

Output KW:

1.1

Output RPM:

3450

Frame NEMA:

56

Mount NEMA:

Base Mount

Enclosure NEMA:

DP

Enclosure IEC:

IP12

Voltage:

115/230

Frequency (Hz):

60

Product Information Packet
