125HP LINCOLN 1780RPM 444TS TEFC 3PH MOTOR LM80194

125HP LINCOLN 1780RPM 444TS TEFC 3PH MOTOR LM80194

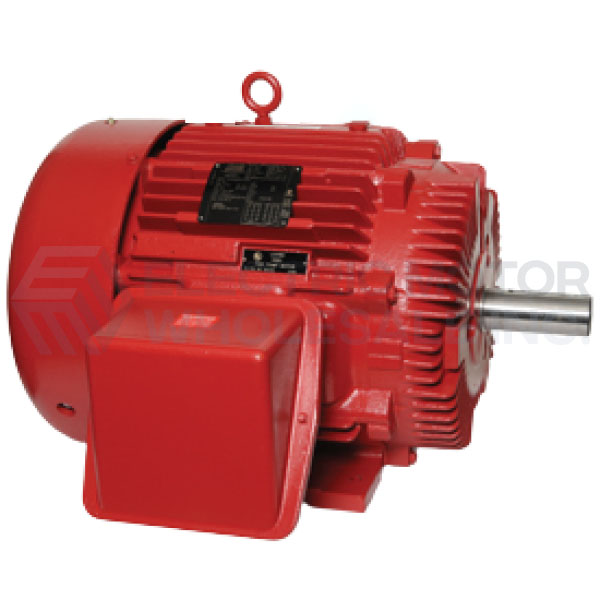

TEFC Firepump4.jpg
Picture is for reference only.

Part Number:

LM80194

Model/Spec Number:

CCF4P125TS64PYAP5

Manufacturer:

Lincoln
LM80194 LINCOLN 125HP Fire Pump Motor is ideal for use with fire pump duty and installed per NFPA-20. These TEFC motors are intended for installation in relatively damp, dusty and dirty environments. Fire Pump motors are not recommended for use with variable frequency drives.

Item Discontinued

Click below to request an agent review potential options.

Free No Rush Shipping

Weight:

1,807 lbs

Dimensions:

12 x 20 x 12 inches

HS Code:

8501.52.0000

UPC:

691720984406

Technical Details

Brand:

Lincoln

Application:

Fire Pump

Output HP:

125

Output KW:

93.0

Output RPM:

1780

Frame Size NEMA:

444TS

Mount NEMA:

With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP43

Voltage:

460

Product Information Packet
