250HP LINCOLN 3600RPM 449TS TEFC 3PH MOTOR LM80101

250HP LINCOLN 3600RPM 449TS TEFC 3PH MOTOR LM80101

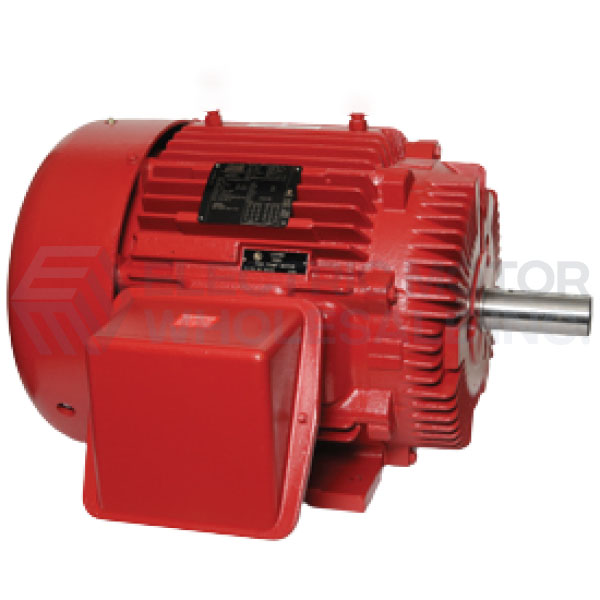

TEFC Firepump5.jpg
Picture is for reference only.

Part Number:

LM80101

Model/Spec Number:

CC449F2P250TS64PYAP5

Manufacturer:

Lincoln
LM80101 LINCOLN 250HP Fire Pump Motor is ideal For use on pumps designed for fire pump duty and installed per NFPA-20. These TEFC motors are intended for installation in relatively damp, dusty and dirty environments. Fire Pump motors are not recommended for use with variable frequency drives.

Item Discontinued

Click below to request an agent review potential options.

Weight:

40 lbs

Dimensions:

12 x 20 x 12 inches

HS Code:

8501.52.0000

Technical Details

Brand:

Lincoln

Application:

Fire Pump

Output HP:

250

Output KW:

185

Output RPM:

3600

Frame Size NEMA:

449TS

Mount NEMA:

With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP43

Voltage:

460

Motor Drawing

Connection Diagram
