7.5HP LINCOLN 1800RPM 213T TEFC 3PH MOTOR LM80060

7.5HP LINCOLN 1800RPM 213T TEFC 3PH MOTOR LM80060

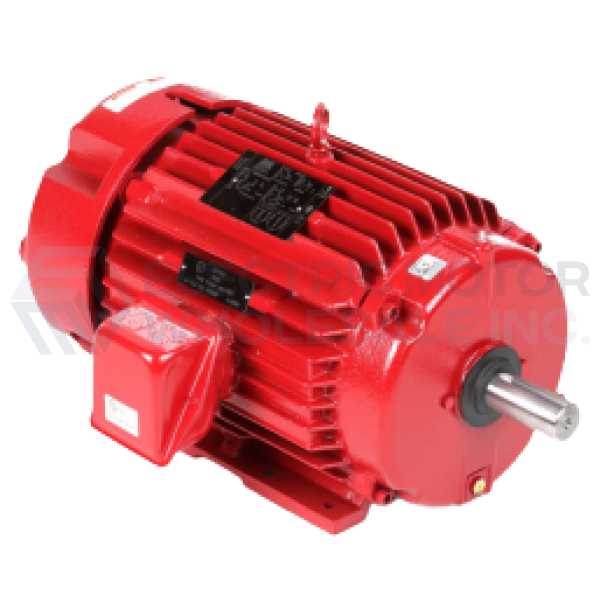

TEFC Firepump2.jpg
Picture is for reference only.

Part Number:

LM80060

Model/Spec Number:

CCF4P7.5T62AP5

Manufacturer:

Lincoln
LM80060 LINCOLN 7.5HP Fire Pump Motor is ideal for use with fire pump duty and installed per NFPA-20. These TEFC motors are intended for installation in relatively damp, dusty and dirty environments. Fire Pump motors are not recommended for use with variable frequency drives.

Item Discontinued

Click below to request an agent review potential options.

Weight:

40 lbs

Dimensions:

12 x 20 x 12 inches

UPC:

691720048979

Technical Details

Brand:

Lincoln

Application:

Fire Pump

Output HP:

7.5

Output KW:

5.5

Output RPM:

1800

Frame Size NEMA:

213T

Mount NEMA:

With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP43

Voltage:

200/400

Product Information Packet
