40HP LINCOLN 1800RPM 324T TEFC 3PH MOTOR LM80027

40HP LINCOLN 1800RPM 324T TEFC 3PH MOTOR LM80027

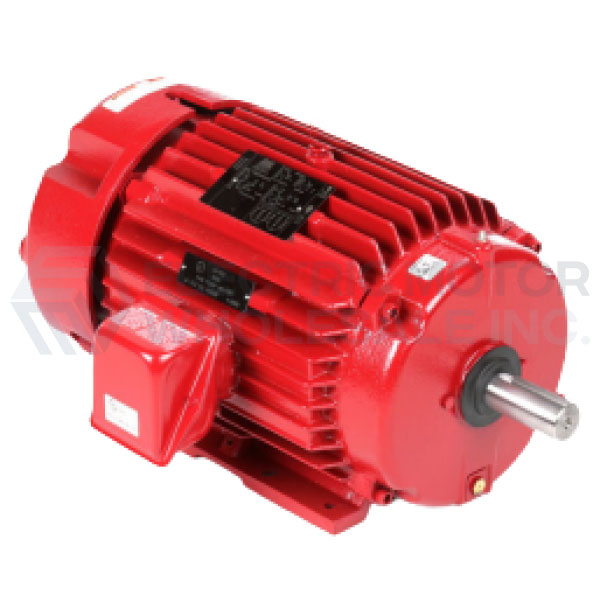

TEFC Firepump3.jpg
Picture is for reference only.

Part Number:

LM80027

Model/Spec Number:

CCF4P40T62YAP5

Manufacturer:

Lincoln
LM80027 40HP Fire Pump Motor is ideal for use with fire pump duty and installed per NFPA-20. These TEFC motors are intended for installation in relatively damp, dusty and dirty environments. Fire Pump motors are not recommended for use with variable frequency drives.

Item Discontinued

Click below to request an agent review potential options.

Weight:

40 lbs

Dimensions:

12 x 20 x 12 inches

UPC:

691720049044

Technical Details

Brand:

Lincoln

Application:

Fire Pump

Output HP:

40

Output KW:

30.0

Output RPM:

1800

Frame Size NEMA:

324T

Mount NEMA:

With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP43

Voltage:

200/400
