30HP LINCOLN 1750RPM 286T DP 3PH MOTOR LM33048

LINCOLN Catalog Number:  LM33048
Description:  30HP,1750RPM,286T,DP,3PH,60HZ
Ship Weight:  411 lbs.

Subject to availability, call for lead times.

LINCOLN Three Phase 80 Starts Per Hour Hydraulic Elevator Pump Motors: Ideally suited for hydraulic pump passenger, service, freight, and dumbwaiter low rise elevators. Typically hydraulic elevators travel up to 6 floors at speeds up to 200 fpm.

Features Include:

  • Made In U.S.A.
  • Dual Rated Nameplates for 80 & 120 Starts/Hour
  • Wye Start/Delta Run
  • Class F Insulated
  • 40° C Ambient
  • F-1 Mounting
  • Ball Bearings with Grease Fittings and Automatic Relief
  • NEMA Dimensions
  • CSA Approved, UL Recognized
  • Constructed for low noise and low vibration.
Volts 230 Volts 460 Volts 230/460
F.L. Amps 74 F.L. Amps 37 F.L. Amps 96/48
S. F Amps   S. F Amps   S. F Amps

RPM 1800 Hertz 60/60
HP 30 Duty 120/80 STARTS/HOUR TYPE TDS
KW 22.4
Frame 286T Serv. Factor 1.0 Phase 3
Max Amb 40 Design SPECIAL Code D
Insul Class F Protection NOT Therm.Prot.
Eff 100% 94.1 Eff 75%   PF 81
UL V-INS, CONST UL REC CSA Yes Bearing OPE 6210
CC Number EXEMPT CE Yes Bearing PE 6311
Load Type   Inverter Type   Speed Range NONE

Motor Wt. 411 LB Enclosure DP Lubrication STANDARD
Nameplate 92117-AZ-L-BCD-B-A-X Mounting RIGID Rotation REV

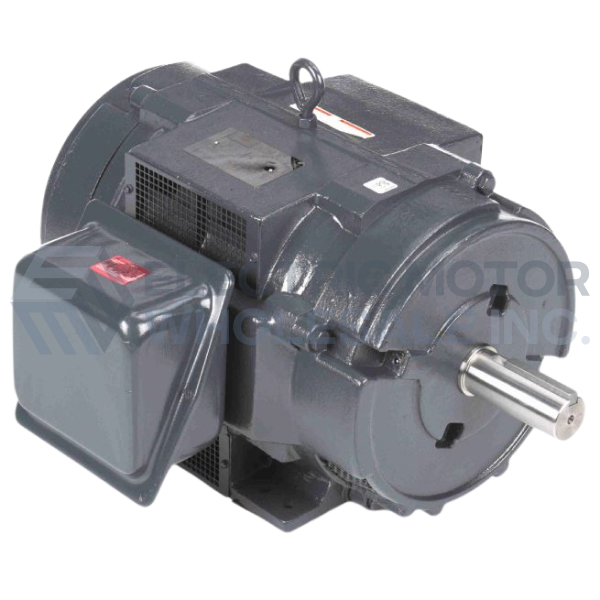

30HP LINCOLN 1750RPM 286T DP 3PH MOTOR LM33048
Click Image to Enlarge
Picture is for quick refrence only
Manufacturer Part Number: LM33048
Stock # LM33048
Price: $1,404.00
Compare At: $3,646.00
