125HP LINCOLN 1170RPM 445T TEFC 3PH MOTOR LM33032

LINCOLN Catalog Number:  LM33032
Description:  125HP,1170RPM,445T,TEFC,3PH,60HZ
Ship Weight:  1690 lbs.



Subject to availability, call for lead times.

LINCOLN Three Phase TEFC Crusher Duty Motors: Ideally suited for size reduction equipment including rock crushers and pulverizers and other uses in the aggregate and construction industries. Crusher Duty motors are designed for belted (radial) loads only.

Features Include:

  • Made In U.S.A.
  • Drive end roller bearing/Hi-strength steel shaft
  • Superior speed-torque curves - most SF models nameplated Design B & C. All CCS models labeled Design C
  • Full cast iron construction
  • Inverter-Rated
  • Premium Class F Insulation System
  • Across-the-line, Y-Delta (YDS) and Part Winding (PWS) Start capability
  • Installation versatility - mount Lincoln Crusher Duty motors horizontal or vertical shaft down
  • Over temperature protection – Class F thermostats
  • Drive-end roller bearing for belted load applications
  • 4140 grade high strength shaft material
  • Warranty – (sine-wave power and inverter power*) 18
    months from date of manufacture and 12 months from date of
    installation which ever period expires first.

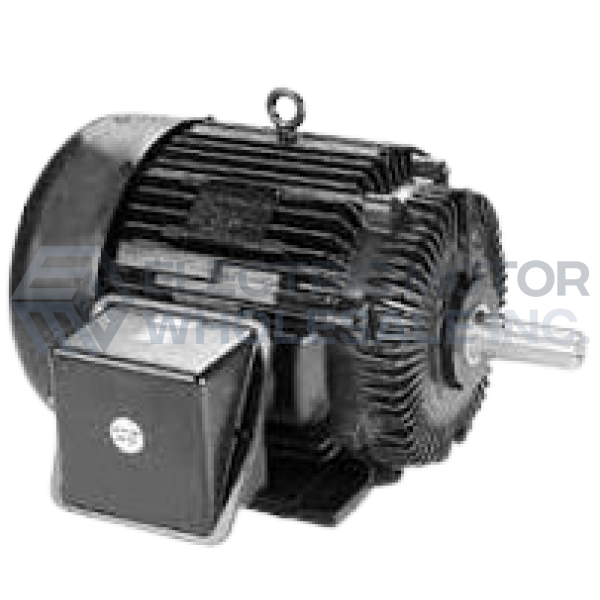

125HP LINCOLN 1170RPM 445T TEFC 3PH MOTOR LM33032
Click Image to Enlarge
Manufacturer Part Number: LM33032
Stock # LM33032
