1HP LINCOLN 3450RPM 56C TEFC 230/460V 3PH MOTOR LM24139

Catalog Number:  LM24139
Model Number: SRF2S1TCN61
Description:  1HP,3450RPM,56C,TEFC,230/460V,3PH,60/50HZ
Ship Weight:  28 lbs.

APPLICATIONS: For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other standard industrial applications.

Features Include:

  • Steel Frame construction
  • C-Face no base
  • Standard efficient
  • 1-year warranty on Standard efficient motors
  • 1.15 Service factor
  • Inverter-rated
  • Class B insulation systems
  • Shielded ball bearings for direct coupled applications
  • Contact us for belted load applications
  • Continuous duty
  • Dynamically balanced rotors
  • Torques exceed NEMA performance standards
  • UL recognized and CSA certified
  • Footnotes: S, US
Volts 230 Volts 460 Volts 190-208/380-415
F.L. Amps 3.7 F.L. Amps 1.85 F.L. Amps 3.8-4.2/1.9-2.1
S. F Amps 3.8 S. F Amps 1.9 S. F Amps
RPM 3600 Hertz 60/50
KW .75
Frame 56C Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code M
Insul Class B Protection NOT Therm.Prot.
Eff 100% 74 Eff 75%   PF
CC Number EXEMPT CE   Bearing PE 203
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 28 LB Enclosure TEFC Lubrication STANDARD
Nameplate   Mounting ROUND Rotation REV

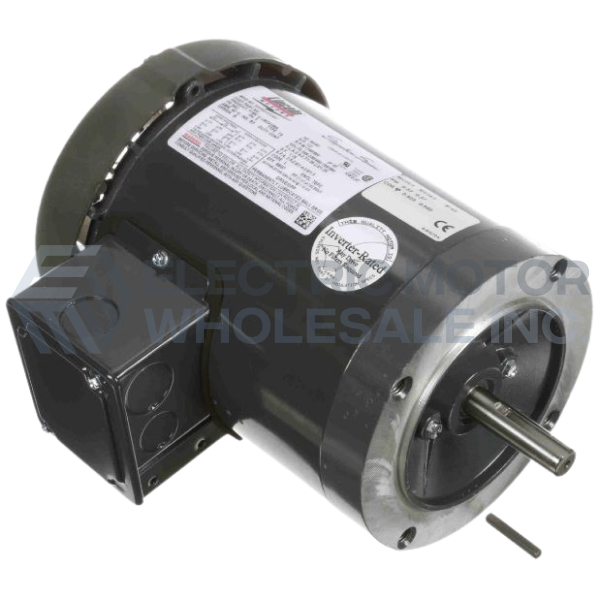

1HP LINCOLN 3450RPM 56C TEFC 230/460V 3PH MOTOR LM24139
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: LM24139
Stock # LM24139
