2HP LINCOLN 1725RPM 56C DP 3PH SIGNATURE SERIES MOTOR LM24131
2HP LINCOLN 1725RPM 56C DP 3PH SIGNATURE SERIES MOTOR LM24131

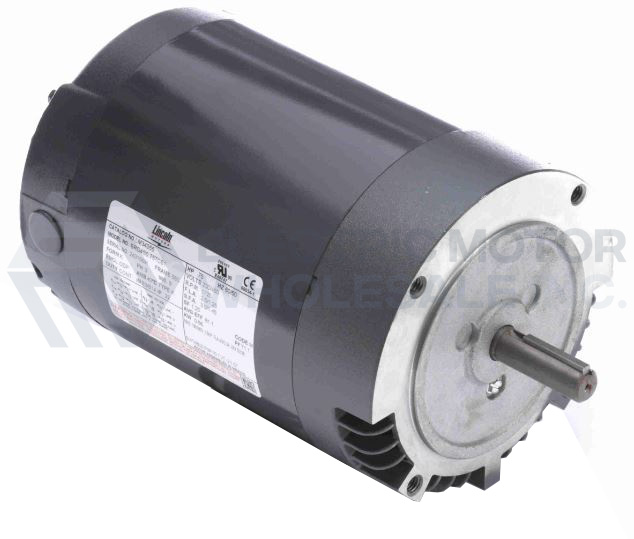

Picture is for reference only.
Part Number:
LM24131Model/Spec Number:
SRD4S2TCN61Manufacturer:
LincolnClick below to view suggested functional replacement.
Shipping Details
Weight:
32 lbsDimensions:
12 x 20 x 12 inchesHS Code:
8501.52.8040Technical Details
Specifications
Brand: | Lincoln |
Application: | General Purpose |
Output HP: | 2 |
Output KW: | 1.5 |
Output RPM: | 1725 |
Frame Size NEMA: | 56C |
Mount NEMA: | C Face No Base |
Enclosure NEMA: | DP |
Enclosure IEC: | IP12 |
Voltage: | 208-230/460 |
Documentation
Additional Information
| Volts | 208-230 | Volts | 460 | Volts | |
| F.L. Amps | 6.2 | F.L. Amps | 3.1 | F.L. Amps | |
| S. F Amps | 6.8 | S. F Amps | 3.4 | S. F Amps | |
| RPM | 1800 | Hertz | 60 | ||
| HP | 2 | Duty | CONTINUOUS | TYPE | TS |
| KW | 1.492 | ||||
| Frame | 56C | Serv. Factor | 1.15 | Phase | 3 |
| Max Amb | 40 | Design | B | Code | K |
| Insul Class | B | Protection | NOT | Therm.Prot. | |
| Eff 100% | 81.5 | Eff 75% | PF | ||
| UL | V-INS, CONST UL REC | CSA | Yes | Bearing OPE | 203 |
| CC Number | CE | Bearing PE | 205 | ||
| Load Type | Inverter Type | NONE | Speed Range | NONE | |
| Motor Wt. | 32 LB | Enclosure | DP | Lubrication | STANDARD |
| Nameplate | Mounting | ROUND | Rotation | REV |
