3/4HP LINCOLN 1725RPM 56C TEFC 230/460V 3PH MOTOR LM24077

Catalog Number:  LM24077
Model Number: SRF4S0.75TCN61
Description:  3/4HP,1725RPM,56C,TEFC,230/460V,3PH,60/50HZ
Ship Weight:  21 lbs.

APPLICATIONS: For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other standard industrial applications.

Features Include:

  • Steel Frame construction
  • C-Face no base
  • Standard efficient
  • 1-year warranty on Standard efficient motors
  • 1.15 Service factor
  • Inverter-rated
  • Class B insulation systems
  • Shielded ball bearings for direct coupled applications
  • Contact us for belted load applications
  • Continuous duty
  • Dynamically balanced rotors
  • Torques exceed NEMA performance standards
  • UL recognized and CSA certified
  • Footnotes: S, MX
Volts 230 Volts 460 Volts 190/380
F.L. Amps 2.8 F.L. Amps 1.4 F.L. Amps 2.8/1.4
S. F Amps 3 S. F Amps 1.5 S. F Amps 2.9/1.45
RPM 1800 Hertz 60/50
HP 3/4 Duty CONTINUOUS TYPE TS
KW 0.56
Frame S56C Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code L
Insul Class B Protection NOT Therm.Prot.
Eff 100% 75.5 Eff 75%   PF 70.5
UL V-INS, CONST UL REC CSA Yes Bearing OPE 203
CC Number EXEMPT CE No Bearing PE 203
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 21 LB Enclosure TEFC Lubrication STANDARD
Nameplate   Mounting ROUND Rotation REV

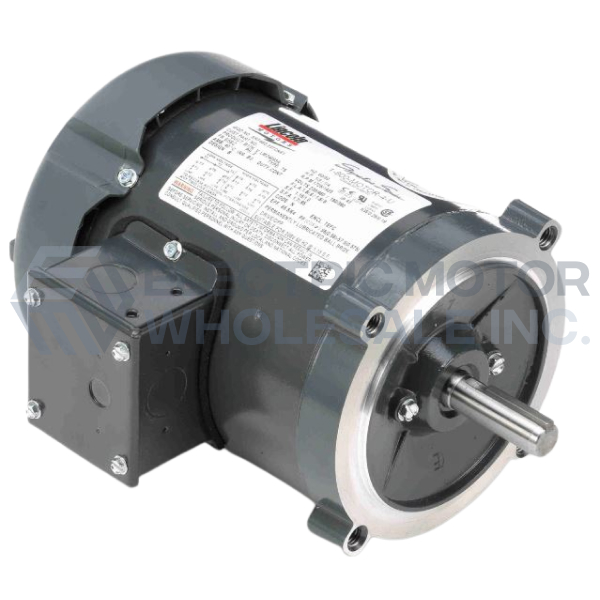

3/4HP LINCOLN 1725RPM 56C TEFC 230/460V 3PH MOTOR LM24077
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: LM24077
Stock # LM24077
Price: $254.00
Compare At: $639.00
Quantity:
