15HP LINCOLN 1750RPM 254TC TEFC 3PH MOTOR LM22839

Catalog Number:  LM22839
Description:  15HP,1750RPM,254TC,TEFC,3PH,60HZ,INVERTER DUTY
Ship Weight:  221 lbs.



Build to order motor with lead times of 3-4 business weeks.
This Lincoln Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

For use in constant torque (conveyors, machine tools) or variable torque (pumps, fans) variable speed applications within the stated speed range of the motor.

Features Include:

  • Made in the U.S.A.
  • Variable torque speed range with open loop drive of 0-60Hz.
  • Constant horsepower speed range of 2x base speed (56-256T frames) or 1.5x base speed (284T-449T frames)
  • Wider speed ranges possile on intermittent duty.
  • Ultimate Spike Defense Insulation System
  • 1.00 service factor on PWM waveform, 1.15 service factor or better on sine-wave power.
  • Precision dynamic balanced rotor assembly
  • Thermal overload protection (Class F Thermostats)
Volts 230 Volts 460 Volts
F.L. Amps 39 F.L. Amps 19.5 F.L. Amps
S. F Amps   S. F Amps   S. F Amps
RPM 1800 Hertz 60
HP 15 Duty CONTINUOUS TYPE TFL
KW 11.2
Frame 254TC Serv. Factor 1.0 Phase 3
Max Amb 40 Design B Code G
Insul Class F Protection NOT Therm.Prot.
Eff 100% 91 Eff 75%   PF 79
UL V-INS, CONST UL REC CSA Yes Bearing OPE 208
CC Number EXEMPT CE Yes Bearing PE 309
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 267 LB Enclosure TEFC Lubrication STANDARD
Nameplate   Mounting RIGID Rotation REV

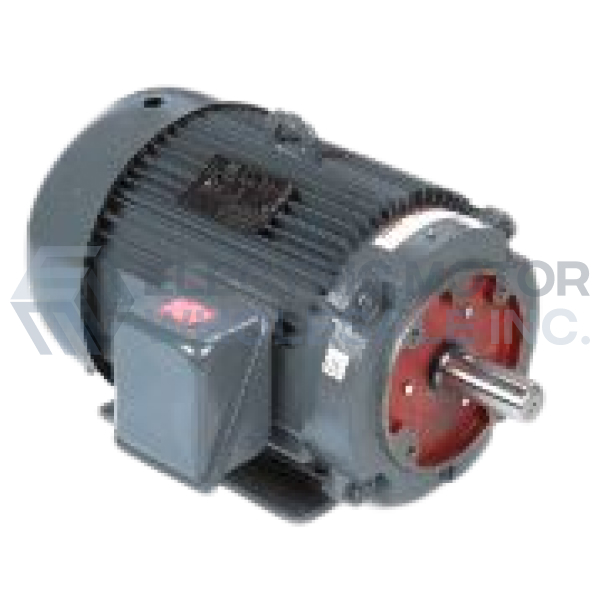

15HP LINCOLN 1750RPM 254TC TEFC 3PH MOTOR LM22839
Click Image to Enlarge
Picture is for quick refrence only
Manufacturer Part Number: LM22839
Stock # LM22839
Price: $1,213.00
Compare At: $3,063.00
